This Lighting control Adapter is used to connect ThinkGrow LED light fixtures to the Trolmaster Hydro-X controllers.

TrolMaster’s Hydro-x system can control most of the supplemental lighting fixtures sold today. Most light manufacturers provide the ability to control their lighting systems using what known as a low-volt control. That low-volt control can take many forms and communication protocols. TrolMaster makes several types of lighting adapters (LMA units) that allow the Hydro-x to control lights using their low-volt control option.

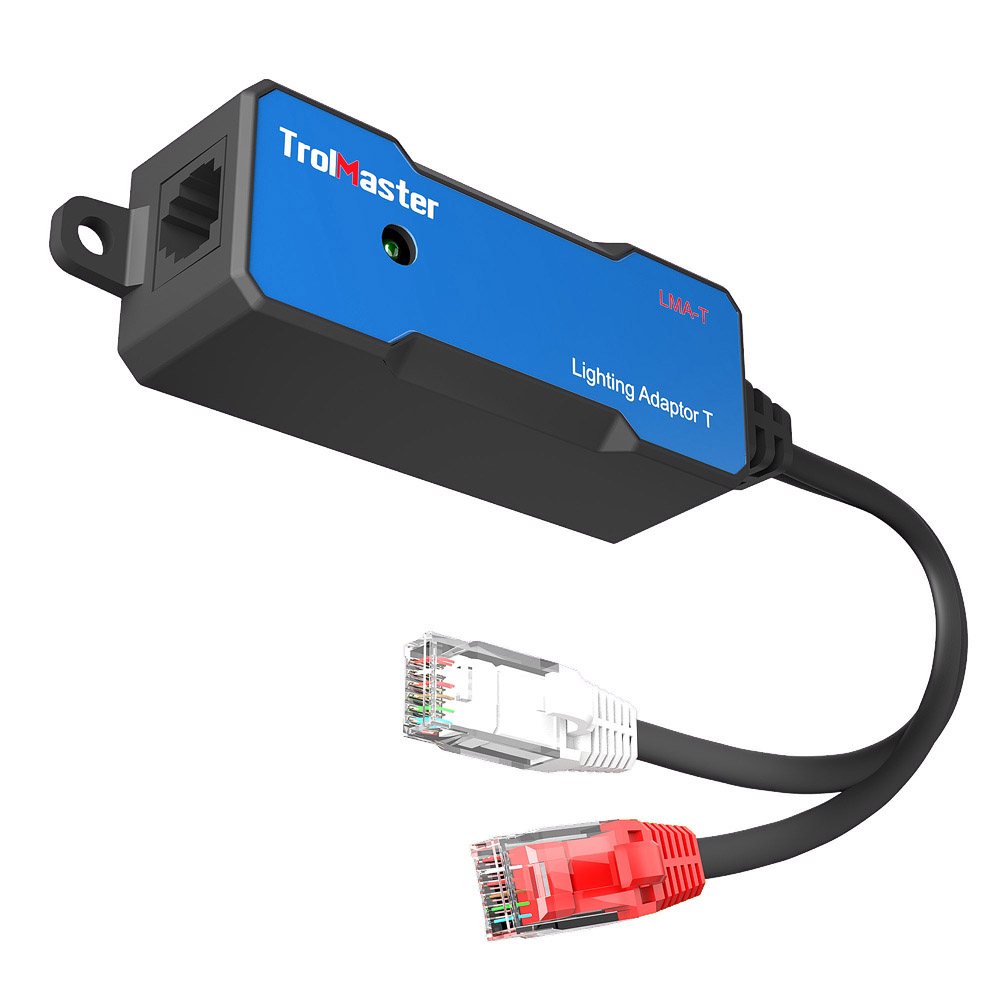

The  LMA-T lighting Control adapter is specially designed for the ThinkGrow LED systems, providing two channels control, which allows separate control for full spectrum and second red output levels on the ThinkGrow LEDs.

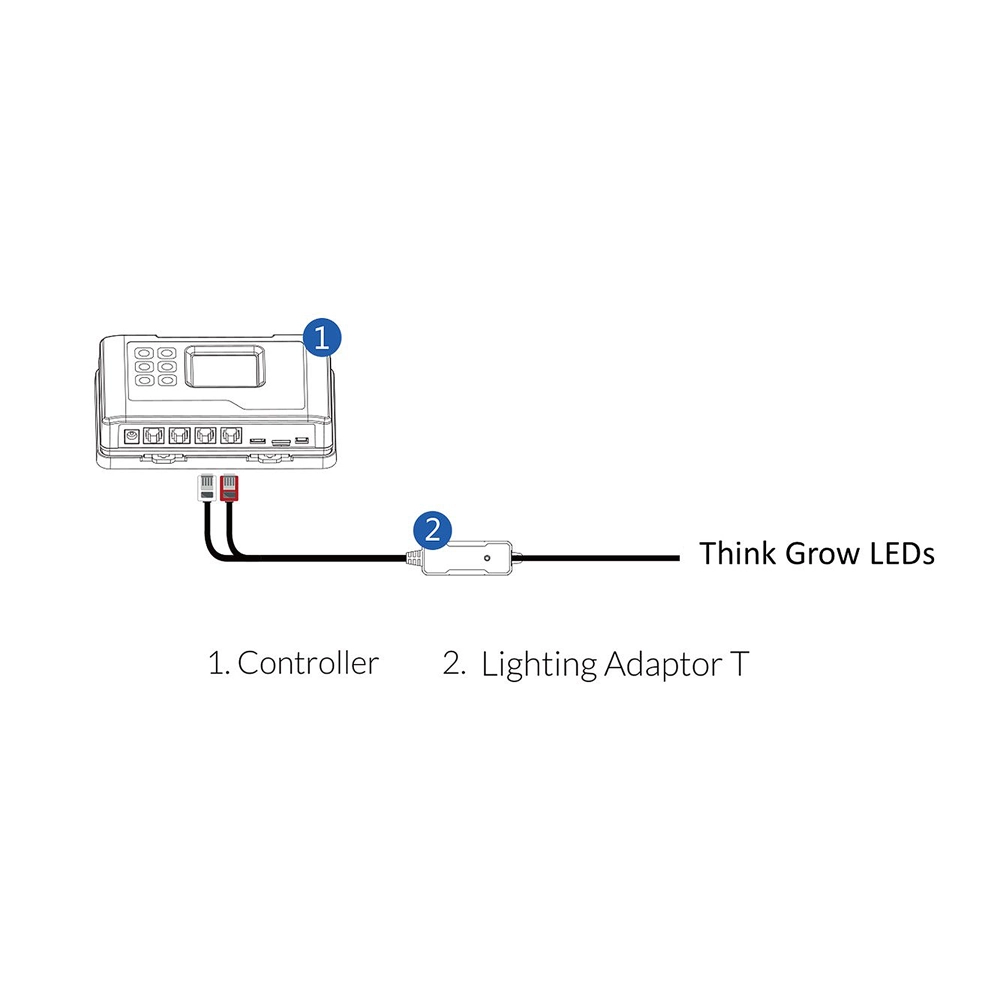

The LMA-T simply connects to the lighting control ports Line 1 and Line 2 on the TrolMaster HCS-1. Once connected, the user can set individual ON /OFF times and the dimming settings for the full spectrum LEDs and also for the second red LEDs.

The LMA-T then is connected to the RJ type lighting control cables where each of the LEDs are connected back to the controller in a daisy-chain configuration using plug-and-play connections.

One adaptor could run up to 256 ThinkGrow LEDs.

* Convert RJ12 to Water Proof Connector Cable included.

TrolMaster ThinkGrow light Adapter LMA-T Spec:

Output Voltage:  0~11.5V

Maximum Current:  0.2A

Working Environment:  Temperature 32-122°F, Humidity≤90%

Packaging Dimensions: 156mm(L) x 83mm(W) x 30mm(H)
