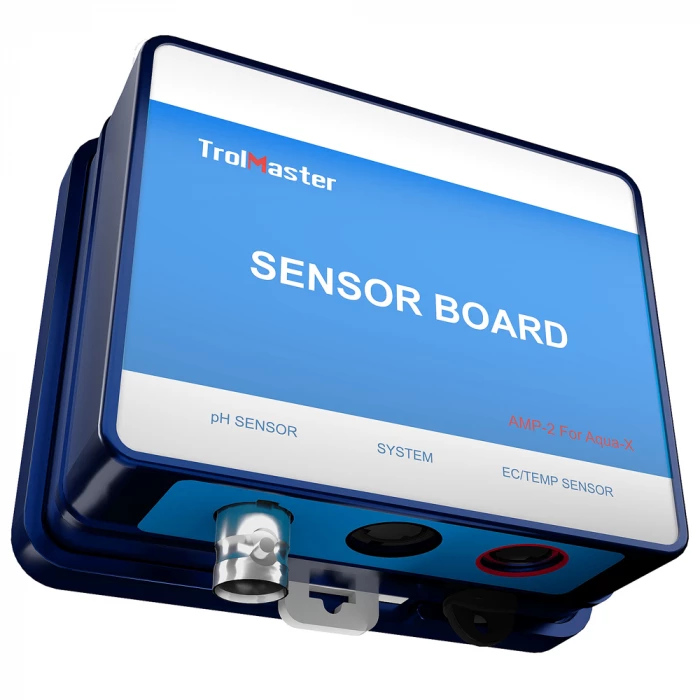

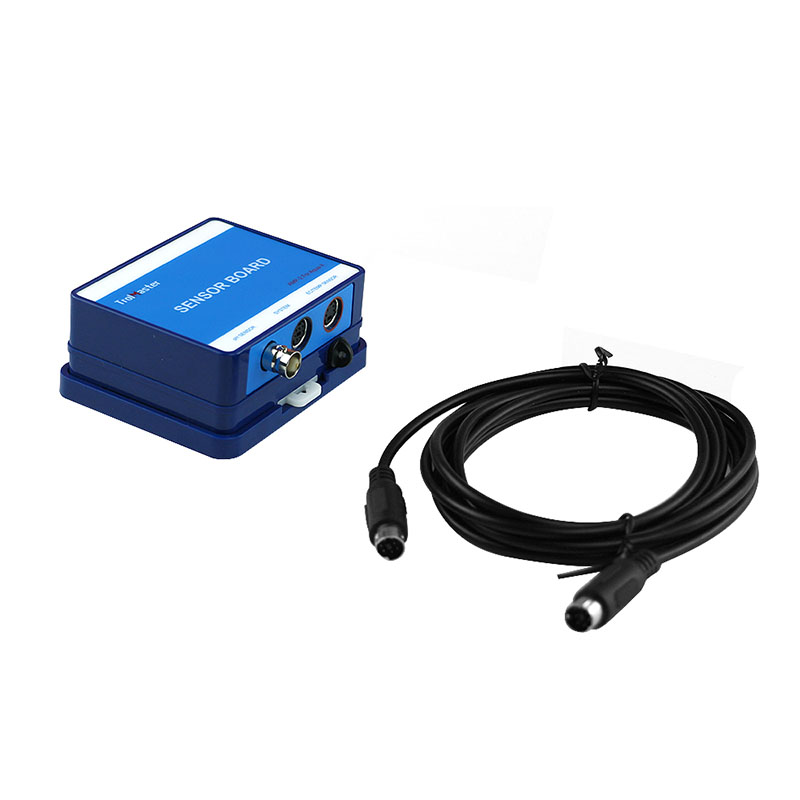

The TrolMaster Sensor Board (AMP-2) module is specially designed for the TrolMaster Aqua-X irrigation Control System. With a male to male signal cable (mini DIN terminal), this unit acts as a bridge between the sensors. For both the pH Sensor & the EC/temp Sensor and the Aqua-x. The pH level, EC level and water temperature will be shown on the LCD screen of the Aqua-x controller

Features:

• Simple to use DIKI Type bracket for easy installation
• BNC Terminal (left) for connecting pH sensor
• Mini-DIN Terminal (right) for connecting EC/Temp Sensor
• Mini-DIN Terminal (middle) for connecting Aqua-x controller
• Supplied with mounting board

Specification:

• Working Environments:            Temperature 32-122°F, Humidity=90%
• Package Dimensions:              160mm(L) x 86mm(W) x 86mm(H)

AMP-2 Cut Sheet_White
