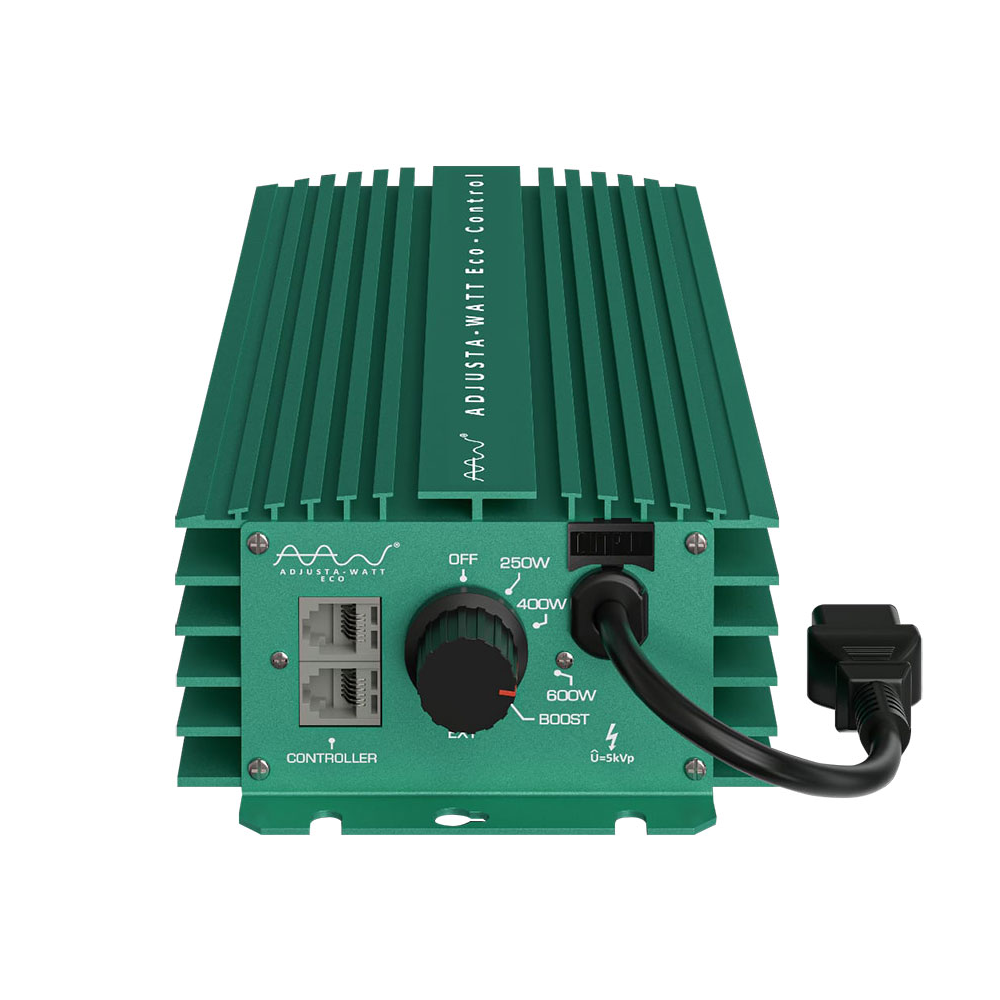

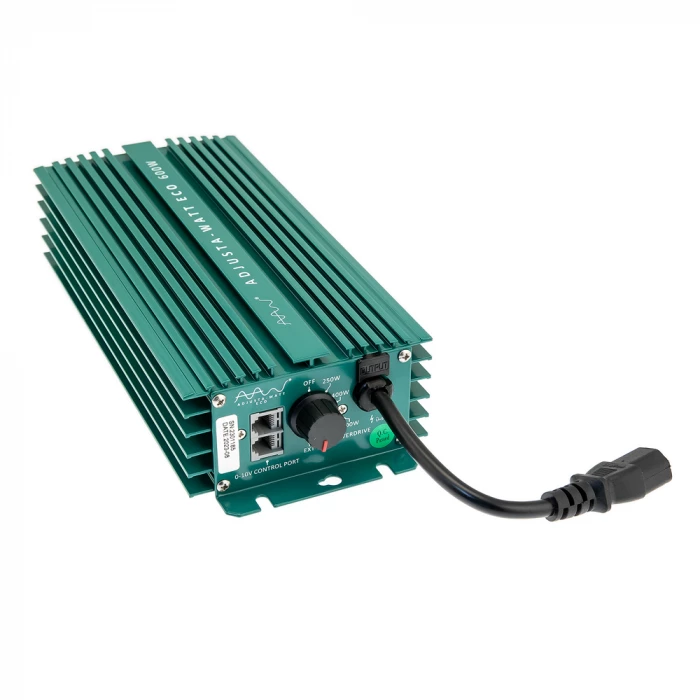

The Adjusta-Watt Eco-Control 600w Digital Ballast represents the very latest in design and functionality. Building on the exceptional reliability of the Adjusta-Watt Digital Ballast. This version introduces the new PWM control enabling seamless compatibility with controllers utilising the PWM protocol including the Adjusta-Watt® Link-30 Controller.  The controller enables automation of up to 30 lighting fixtures.The Eco-Control Ballast offers selectable power outputs allowing you to effortlessly choose between 250w, 400w, and 600w settings using its onboard adjustment dial. Amplify your lighting intensity with the Over-Drive feature while enjoying the established benefits that Adjusta-Watt® are known for, including Intelligent Circuit Protection Software, Hot Lamp Detection, and unparalleled reliability.

Adjusta-Watt Eco-Control Ballast Features:

• PWM control with RJ14 ports
• Over-Drive for More Light
• Intelligent Circuit Protection Software
• Automatic Frequency Adjustment
• Hot Lamp Detection
• Suitable for High Pressure sodiums, metal halide & LED
• Cool operation, making it easier to maintain optimal cool growing conditions
• Efficient over magnetic ballast outputs, measured in lumens of light produced per watt of electricity, is considerably greater and the high frequency output reduces power loss and improves overall power management
• Instant start technology enables the lamp to reach its full radiance within 1 minute of activation
• The ballast operates silently, it is essential to always use good quality lamps from ‘like’ manufacturers

Specification:

• Output parameters.
• Open Circuit voltage – <400v
• Crest ratio – <1.7CF
• Efficiency – >91%
• Output plug IEC female plug
• Output cable – VDE HO5W-F3*1.0mm2
• Working voltage HPS 166-240V
• Working voltage LED – 60-240V

Instructions for use:

Adjust-a-watt-Eco-Control-Digital-Ballast-600w-Instructions
