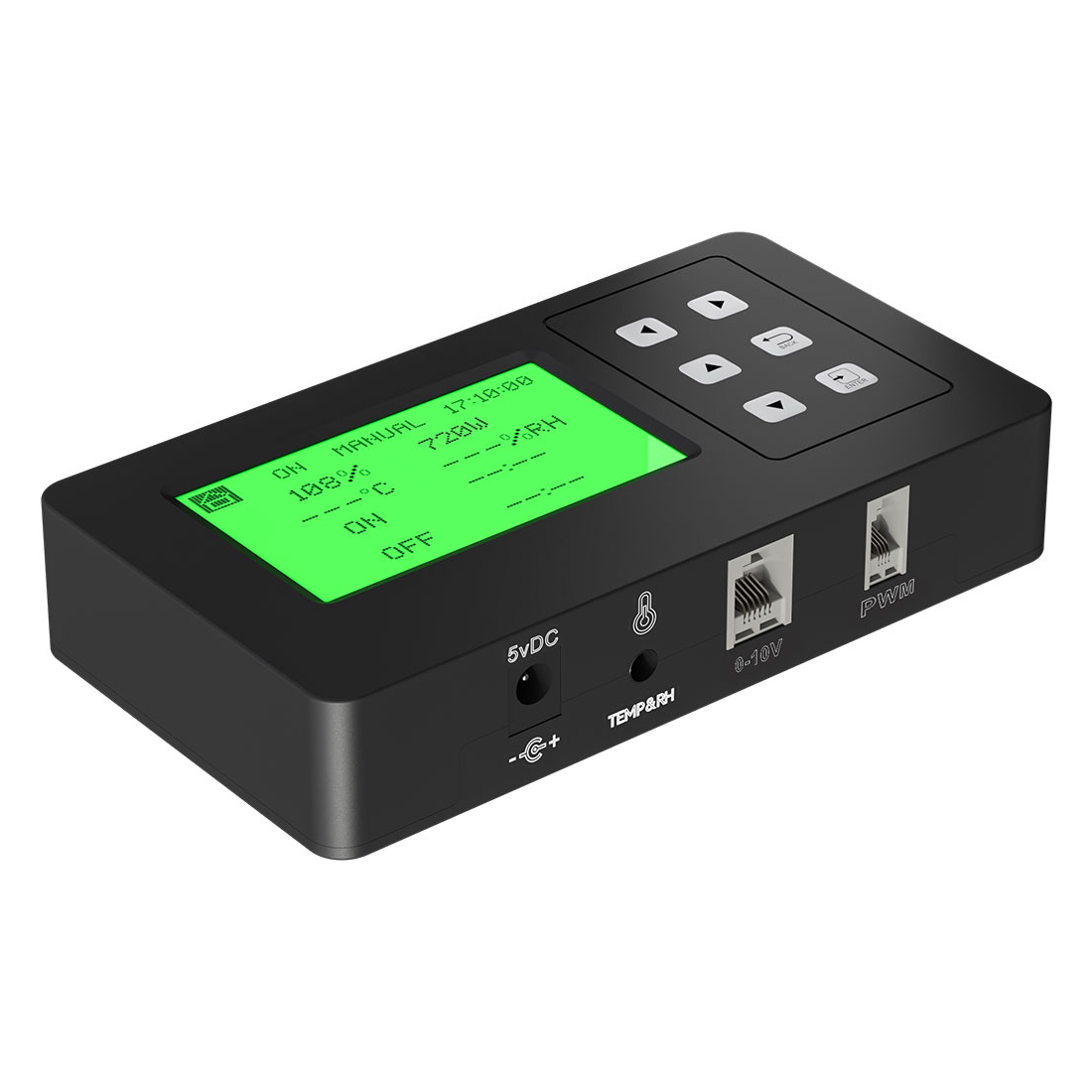

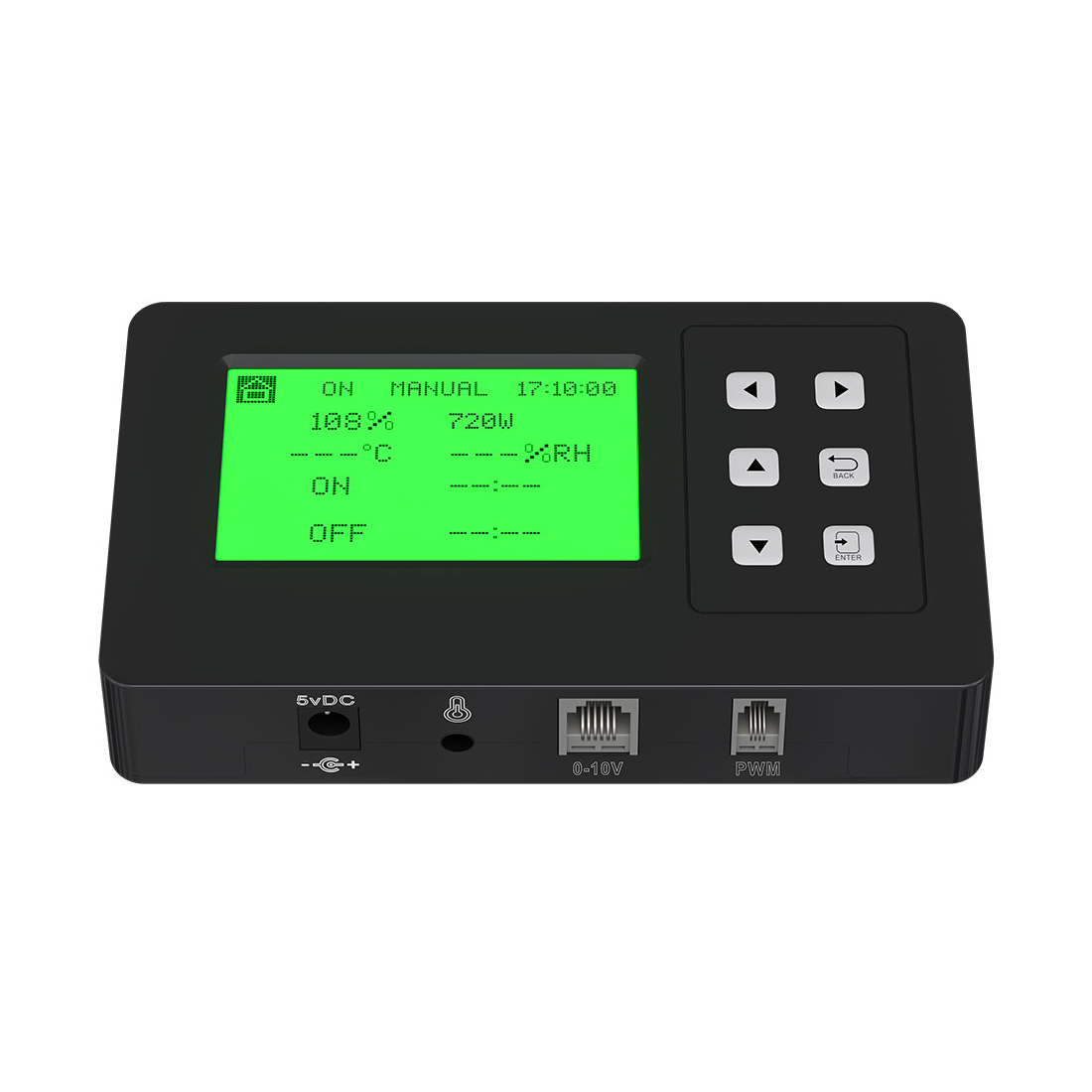

Introducing the versatile Adjusta-Watt® Link-30 Controller, a practical digital lighting control unit designed to manage up to 30 HPS or LED lighting fixtures effortlessly. The controller provides reliable light regulation options and allows you to choose between PWM (Pulse Width Modulation) or 0-10v protocols meaning the Adjusta-Watt® Link-30 Controller seamlessly integrates with a variety of lighting setups from other manufacturers as well as the Adjusta-Watt® Eco-Control Ballast 600W and RETRO LED.

Adjusta-Watt® Link-30 controller Features:

• Controls up to 30 fixtures simultaneously
• For 600w HPS or 720w LED
• Automate fixture ON/OFF times
• Adjust light output between 0-100%
• Optional sunrise/sunset simulation
• Automatic dimming based on temperature
• Automatic temperature safety cut off
• Measure and display temperature and relative humidity data

Specification:

• Input Power: – 5v/2A
• Out Signal: – 0-10v/50mA
• Ambient Temperature: 0-40°C
• Max Linked Quantity: 30 ballasts
• Daisy Chain Ports: – 0-10V (or) PWM
• Housing Material: – ABS Plastic
• Weight: – 310g
• Dimensions: 145mm x 80mm x 28mm

Instructions:

Adjust-a-watt-Controller-Link-30-Instructions-October-23-Final
