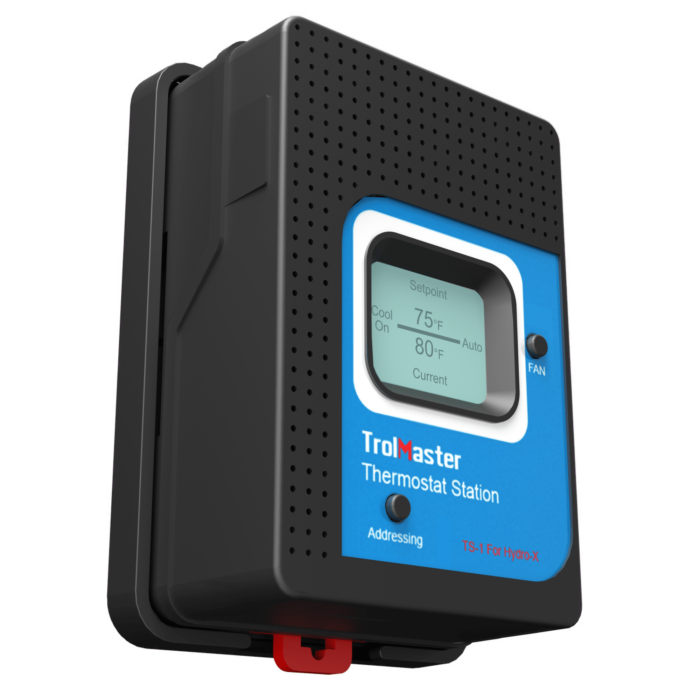

TrolMaster Thermostat Station 1 (TS-1)

SKU: 07161

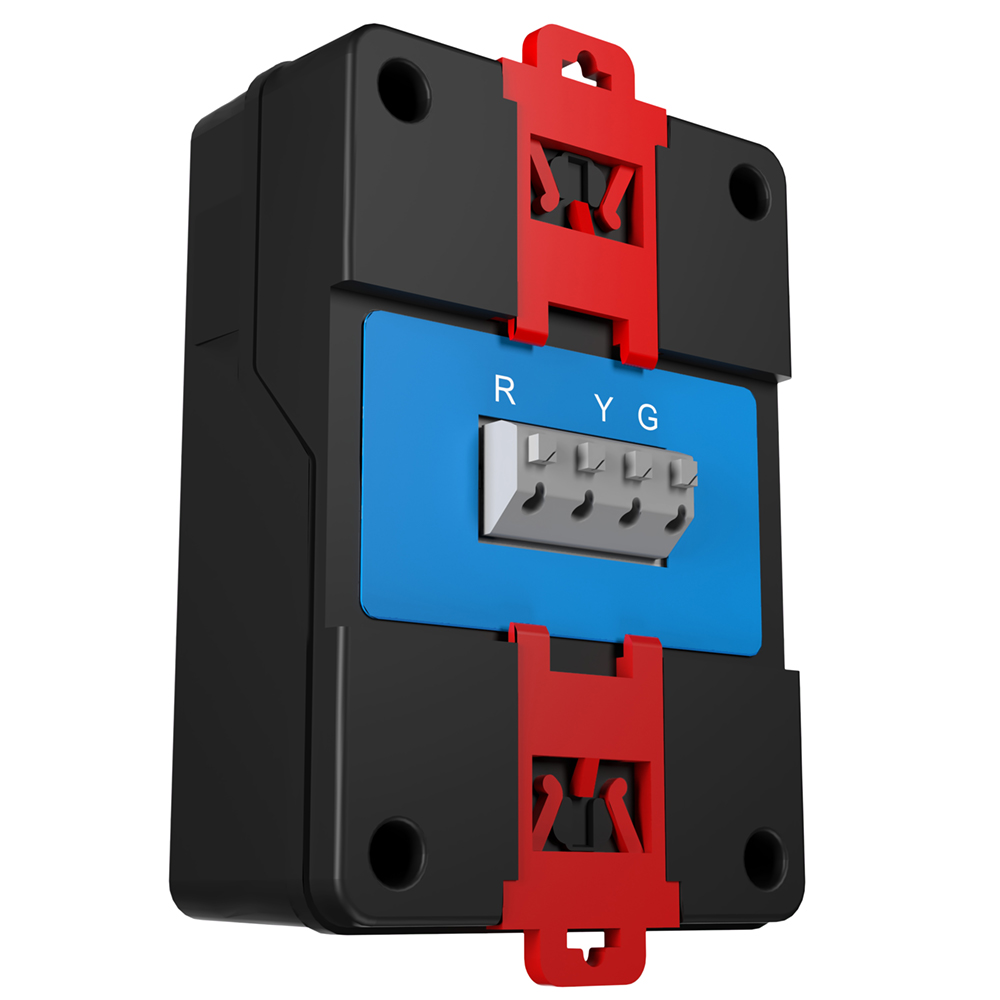

The TrolMaster Thermostat Station (TS-1) is designed to replace a thermostat connected to a conventional cool only HVAC unit. The TS-1 is wired to the HVAC system using the same low-voltage thermostat cable, and has the standard color-coded wiring as most thermostats. The TrolMaster  Hydro-x allows separate Day and Night settings for each of up to (4) TS  modules so multiple HVAC systems can be controlled by a single Trolmaster Hydro-X system.

TrolMaster Thermostat Station Spec & Features:

  • No Extra Power Needed
  • LCD Display, Easy Operation
  • Micro-SD for Firmware Updates

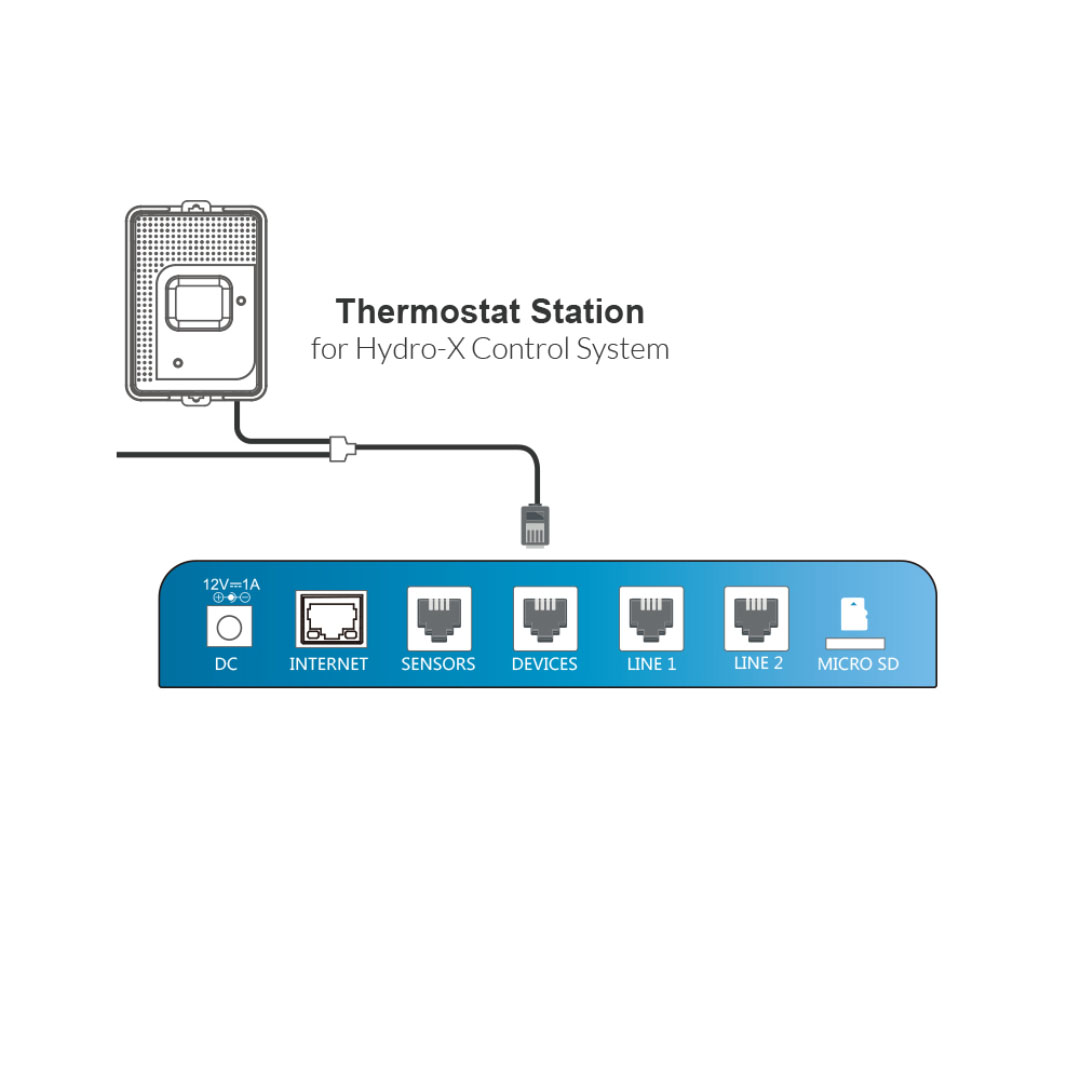

  • Seamless Connectivity with Hydro-X
  • Replace Thermostat to Control Commercial AC Units


  • 1 x Thermostat Station (TS-1)
  • 1 x 16ft RJ12 Cable
  • 1 x 4ft RJ12 Cable
  • 1 x RJ12 T-Splitter


  • Output Voltage:                                24V
  • Maximum Current:                            1A
  • Working Environment:                      Temperature 32-122°F, Humidity=90%
  • Package Dimensions:                       160mm(L) x 86mm(W) x 86mm(H)
  • G.W. per pack:                                 0.40kgs


*Note: TS-1 is specifically designed to replace the traditional thermostat to control Cool Only Commercial AC units.

*Firmware Update Note: To update firmware on the TrolMaster’s controllers and modules, you must use a Micro SD card that is 32GB or less capacity.

Weight 1.0000 kg
