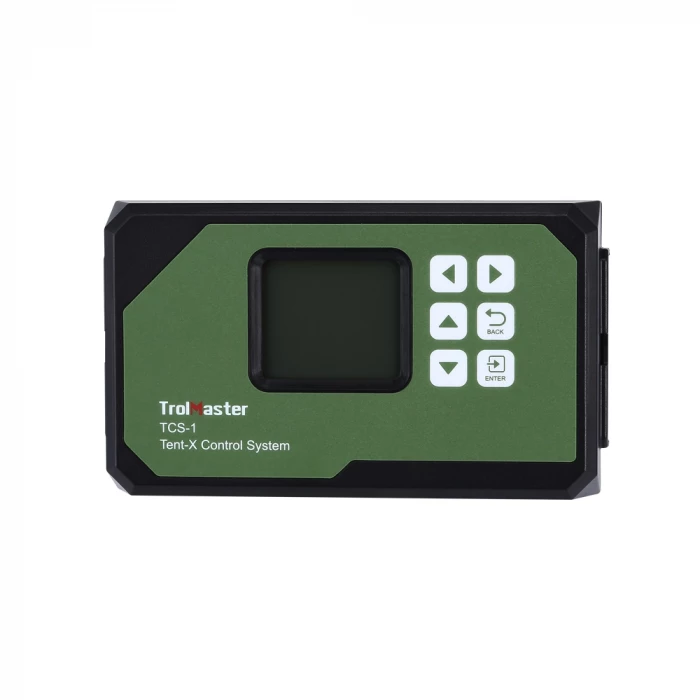

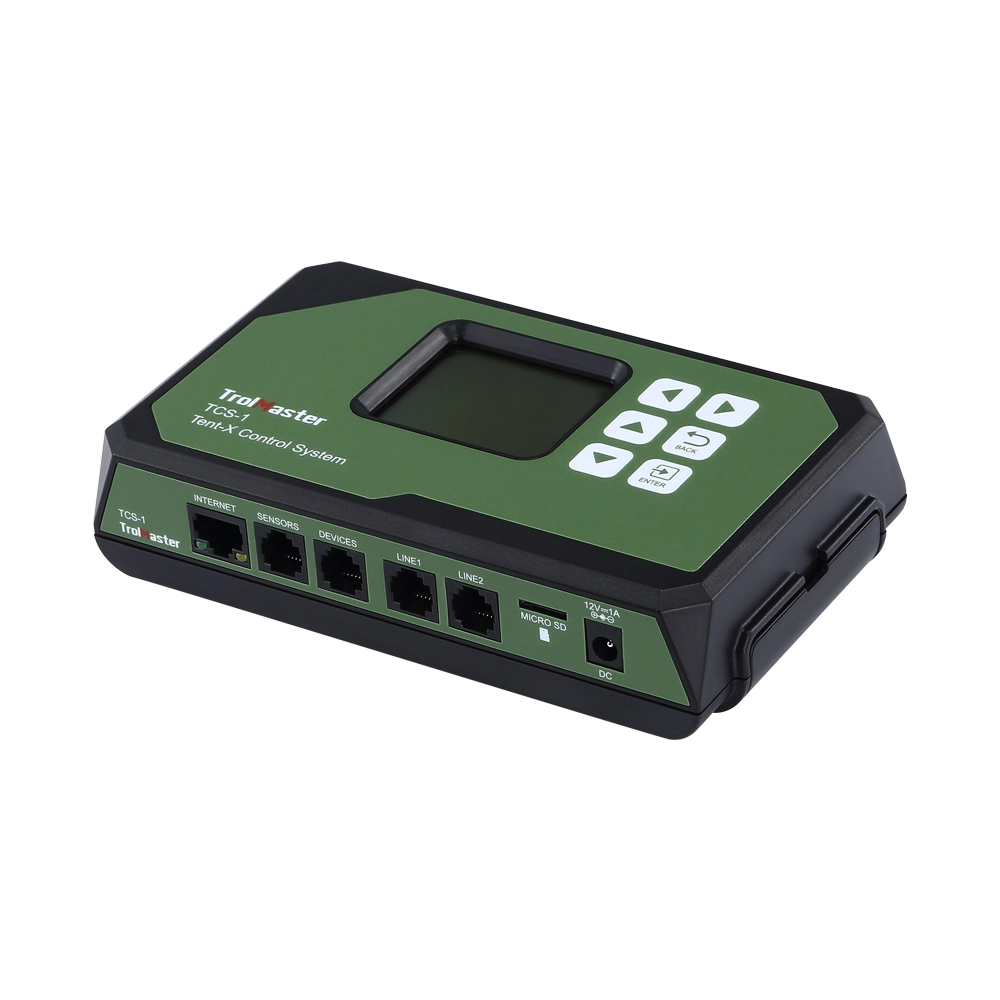

TrolMaster – Tent X Base Station (TCS-1)

SKU: 07301


In stock

TrolMaster’s Tent-X Base Station (TCS-1) is a state-of-the-art professional-grade and modularly designed environmental and irrigation control system. It is designed for single-zone grow tents. Thanks to the controller’s compact hydroponic capabilities, it allows the user to effectively control their tent’s environmental parameters and irrigation schedule with a single control system.

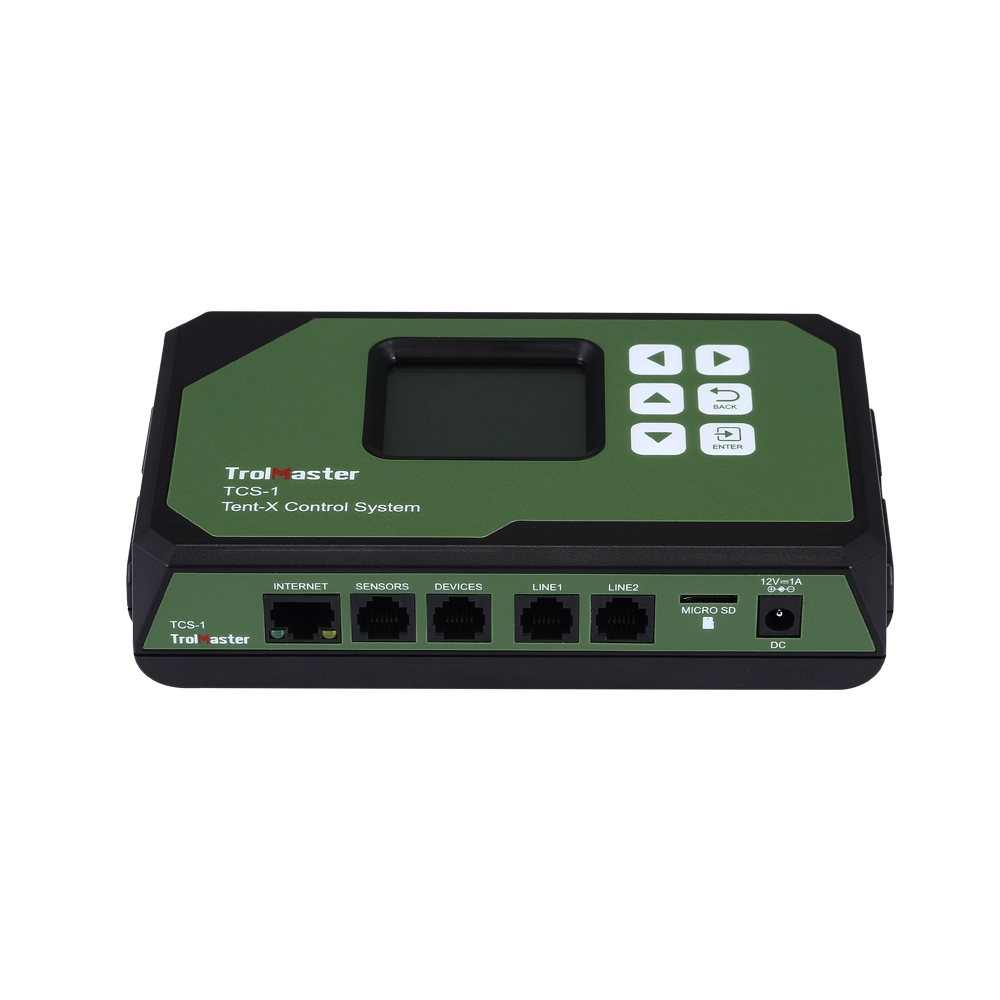

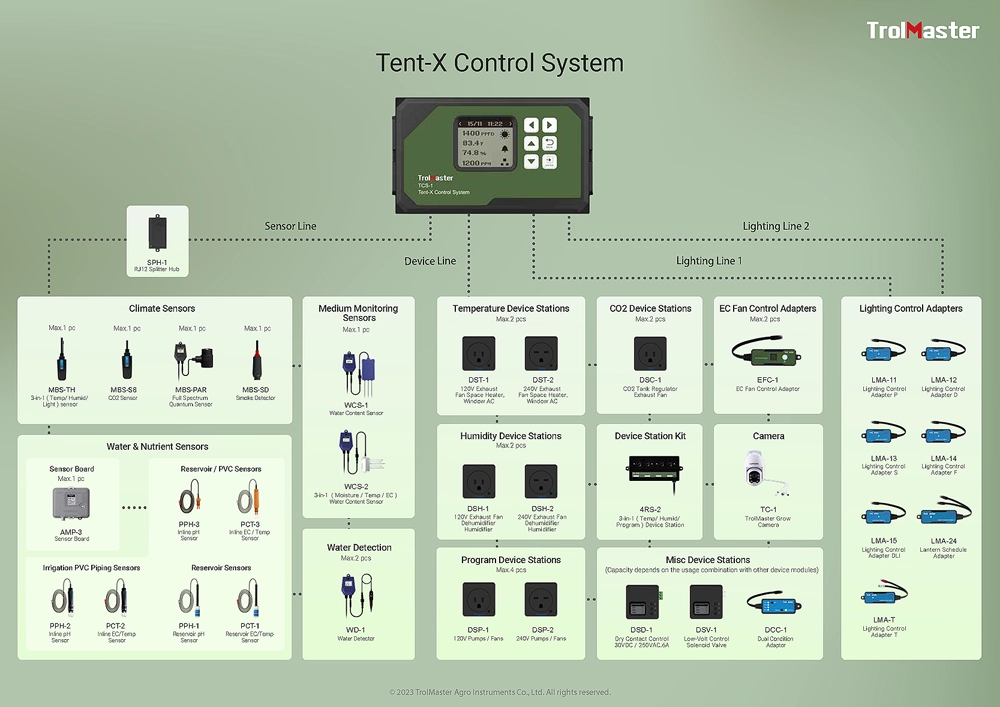

It comes with a 3-in-1 temperature, humidity, and light sensor, the MBS-TH. Users can daisy-chain the MBS-TH sensor with the CO2 sensor (MBS-S8), the full spectrum quantum sensor (MBS-PAR), and the smoke and water detectors into the TCS-1’s SENSOR port.

Users can also connect an AMP-3 sensor board to the Tent-X, and connect the Water content sensors (WCS-1/2) or the WD-1 water detector to the sensor board. Additionally, the TCS-1 supports the connection of up to four DS-type plug-in control models, allowing you to connect devices that can control the environment and irrigation.

The TCS-1 is the brain that unites all your climate control and irrigation devices into one being, allowing your devices to work together to create the optimal growth environment for your plants.

Trolmaster Tent -X Controller Features;

  • Grow Tent Grow Lights
  • Climate
  • Irrigation Compact Hydroponic Control System
  • Modular Design & Fully Customizable
  • Smartphone Control
  • Complete Controlled Device Capacity
  • Data Logging


Input Voltage :

Certifications :

Max Number of Lighting Fixtures :

Max Distance of Device Connected :

3-in-1 (Temp/Humid/Light) Sensor :

CO2 Sensor :

Full Spectrum Quantum Sensor :

Smoke Detector :

AMP-3 Sensor Board (pH/EC/Temp) :

Water Content Sensor :

Water Detector :

Temp Device Stations :

Humid Device Stations :

CO2 Device Stations :

Program Device Stations :

EC Fan Control Adapter :

100-240VAC, 50/60Hz



1000 meters

Max 1pc per set

Max 1pc per set

Max 1pc per set

Max 1pc per set

Max 1pc per set

Max 1pc per set

Max 2pc per set

Max 2pcs per set

Max 2pcs per set

Max 2pcs per set

Max 4pcs per set

Tech sheets and manuals:



For privacy reasons YouTube needs your permission to be loaded.
I Accept


Weight 1.0000 kg
