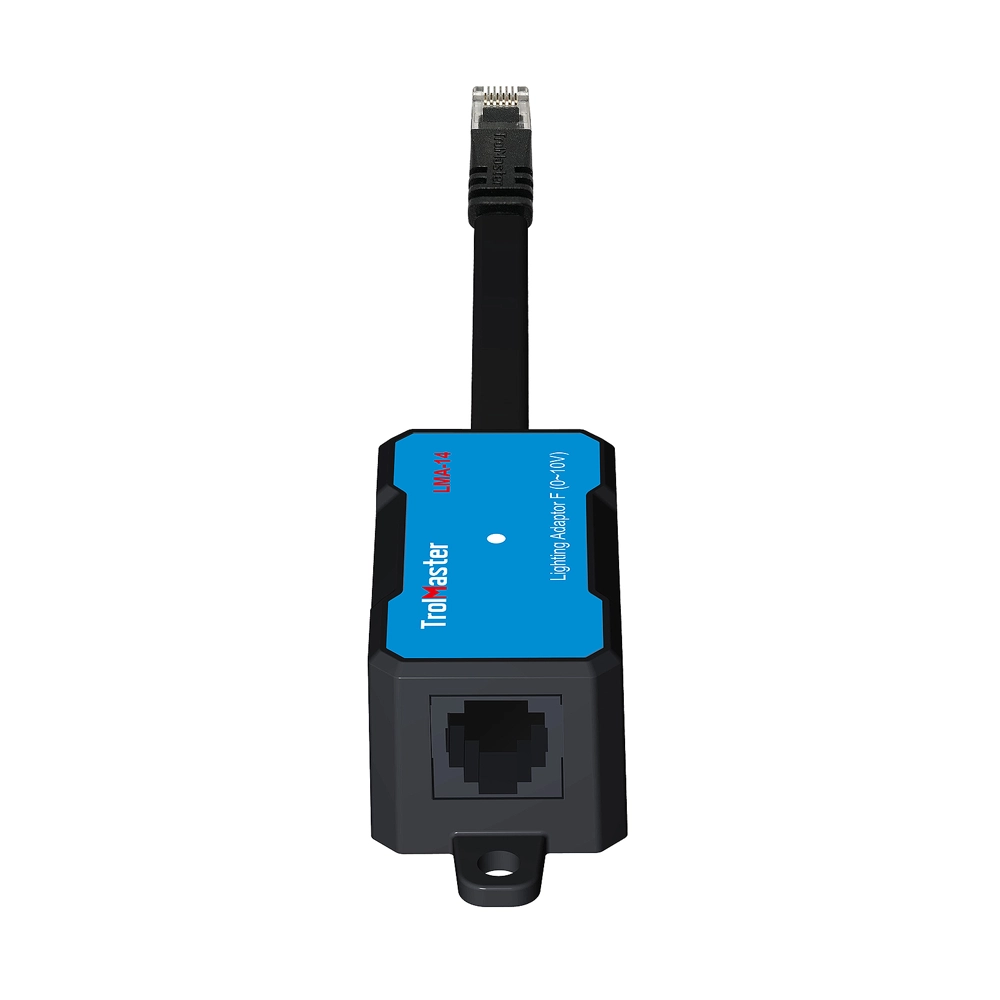

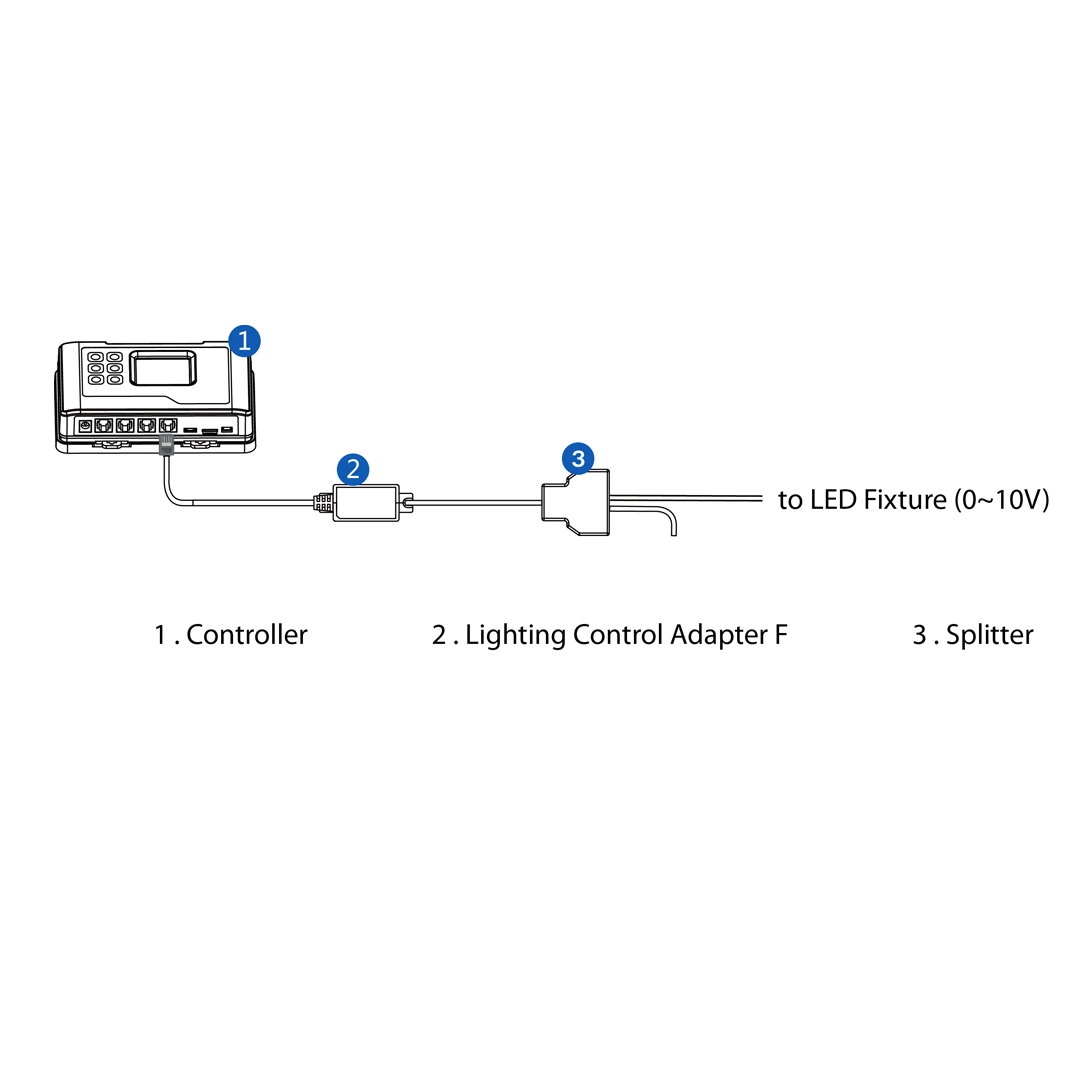

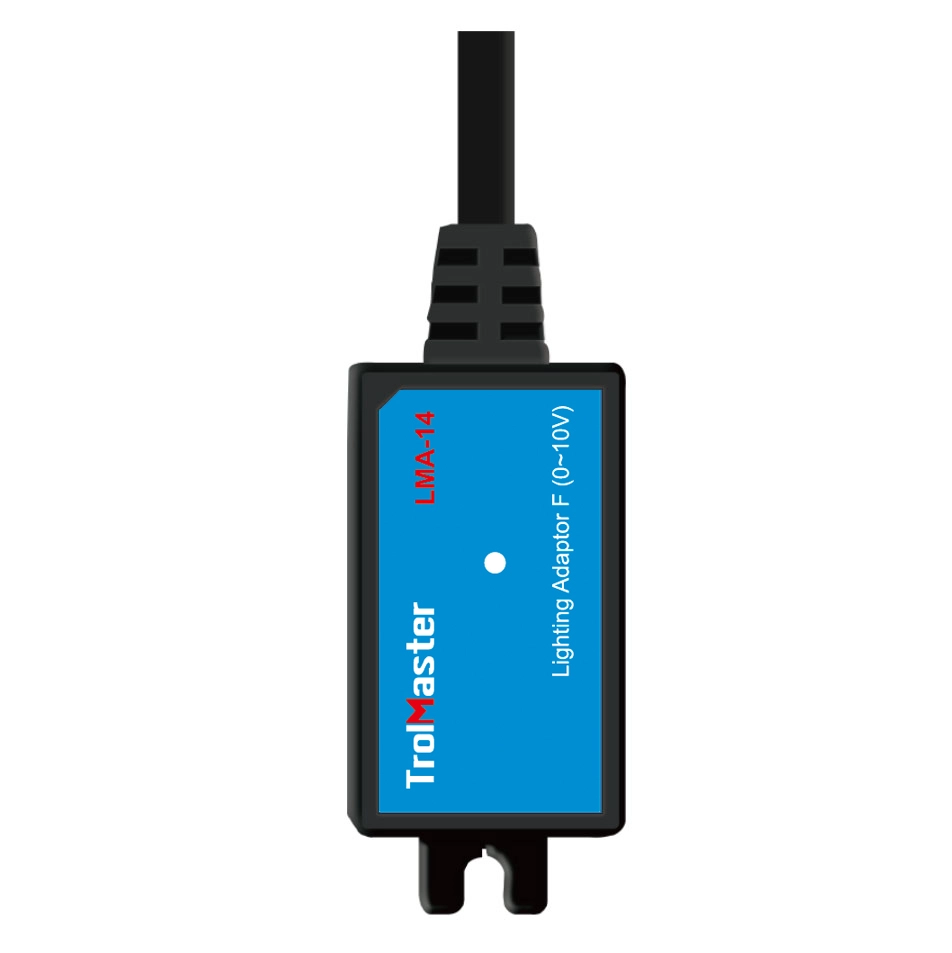

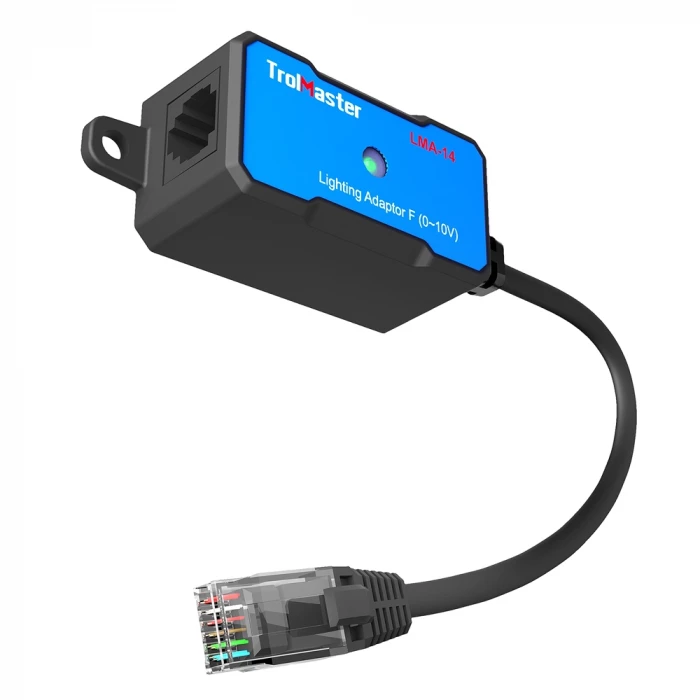

Use the Trolmaster Lighting Control Adapter F (LMA-14) with the TrolMaster Hydro-X Environment Controller HCS-1 to control most 0 – 10 volt protocol LED fixtures.

TrolMaster’s Hydro-X system can control most of the horticultural lighting fixtures sold on the market today. Most light manufacturers provide the ability to control their lighting systems using what known as a low-volt control. That low-volt control can take many forms and communication protocols. TrolMaster makes several types of lighting adapters (LMA units) that allow the Hydro-x to control lights using their low-volt control option.

TrolMaster Lighting Control Adapter F (LMA-14) Compatibility & Specifications:

HIDs: Gavita/Nanolux/Luxx/Growers Choice/Illuminar/PL

LEDs: Fluence/Next light/Photobio

Output Voltage:                          0~11.5V

Maximum Current:                     0.2A

Working Environments:            Temperature 32-122°F, Humidity=90%

Package Dimensions:              160mm(L) x 86mm(W) x 86mm(H)

G.W. per pack:                          0.05kgs

NOTE:

Each LMA-14 can control up to 40 HID lights or 24 LEDs. Additional LMA-14 adapters can be used with the SPH-1 to control as many lights as required.

*When using with Fluence Spyder 2x/2i fixtures @ 277v, no more than 12 LEDs per LMA-14
