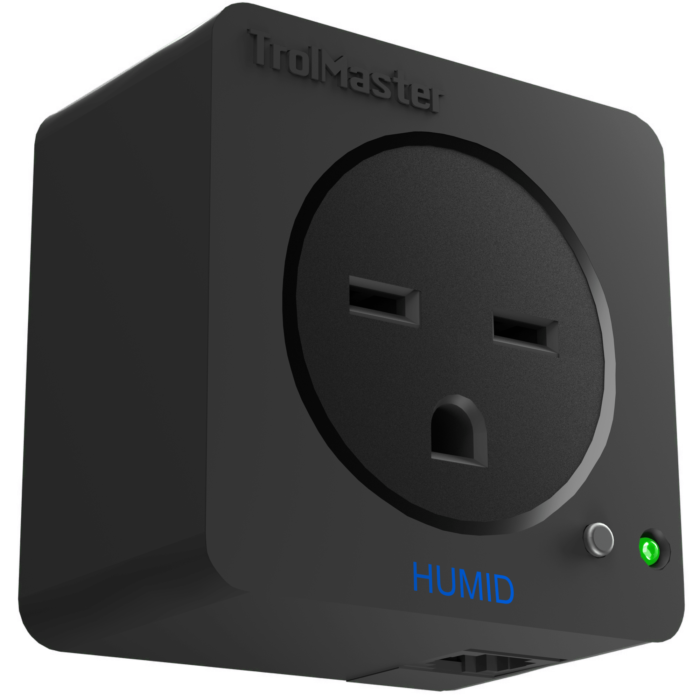

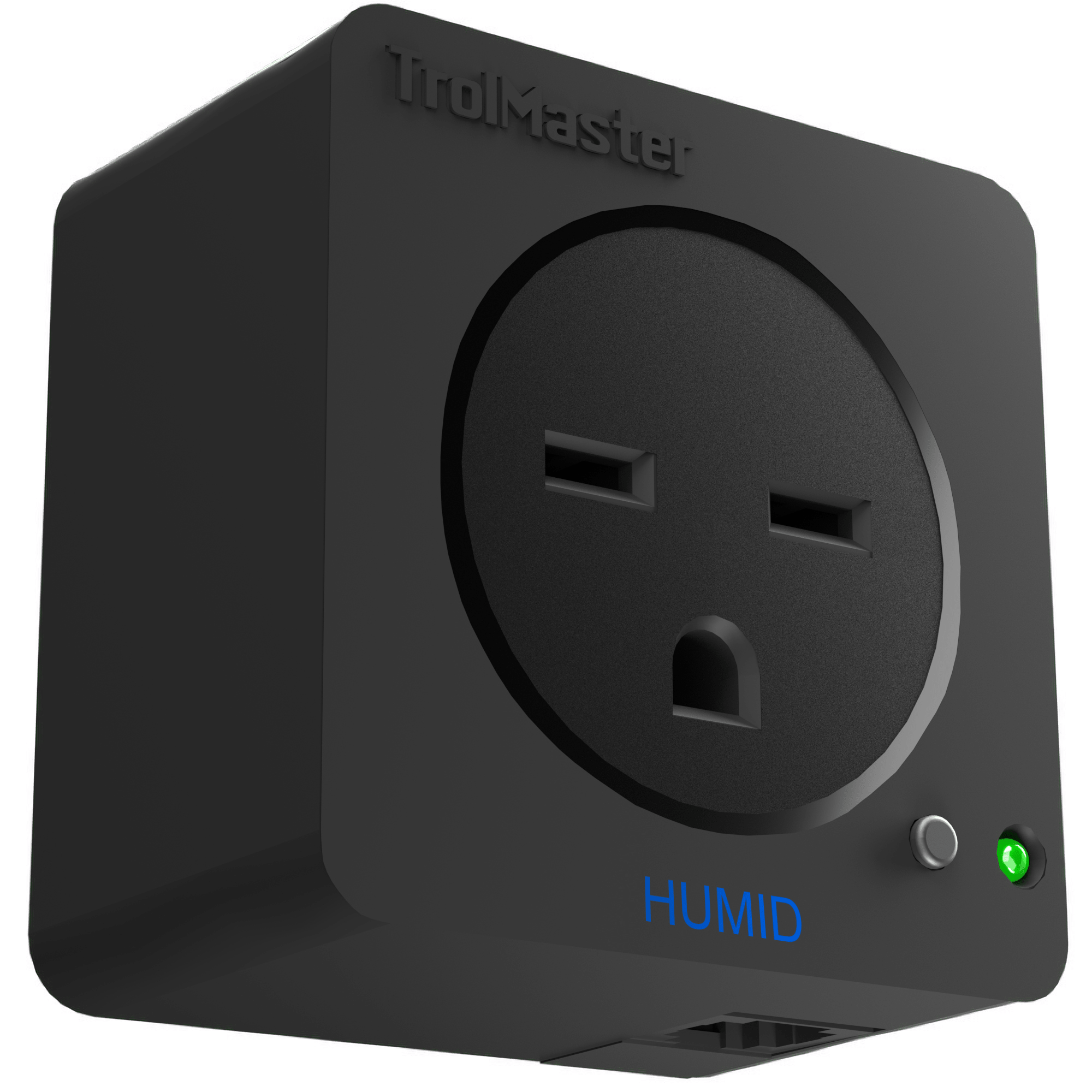

The TrolMaster Humidity Device Station (DSH-2) (240V) allows the user to easily connect and control standard humidifying or dehumidifying devices to the TrolMaster Hydro-x controllers. The DSH modules are rated @ 10-amps. *Use with dehumidifiers less than 7 amps to avoid current overload.

<sub>LED status:
* Blinking green FAST: If the LED is blinking quickly, that means the module has not been addressed to the controller OR that module does not have a good connection to the controller. *Pressing the small button on the module will address/link the module when first installed.
* Blinking green SLOW: If you see a slowly blinking green LED, that means the module is addressed and connected to the controller, and the module is currently turned OFF.
* SOLID green: If you see the LED is on solid (no blinking) that means the modules are addressed, connected and currently turned ON.
* Blinking red: If you see the LED change to blinking red, that means the module has been overloaded. To reset the overload unplug the module from the power.</sub>

TrolMaster Humidity Device Station Spec:

• Input Voltage:                             240 VAC, 50/60Hz
• Output Current:                          10A
• Output Voltage:                          100~240 VAC, 50/60Hz
• Working Environments:               Temperature 32-122°F, Humidity=90%
• Package Dimensions:                  85mm(L) x 80mm(W) x 90mm(H)
• G.W. per pack:                            0.34kgs
