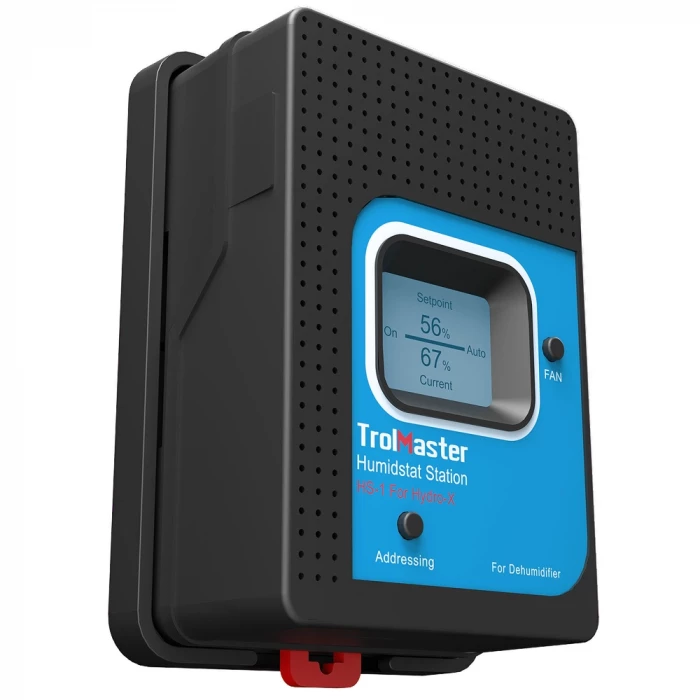

TrolMaster Humidistat Station (HS-1)

SKU: 07164

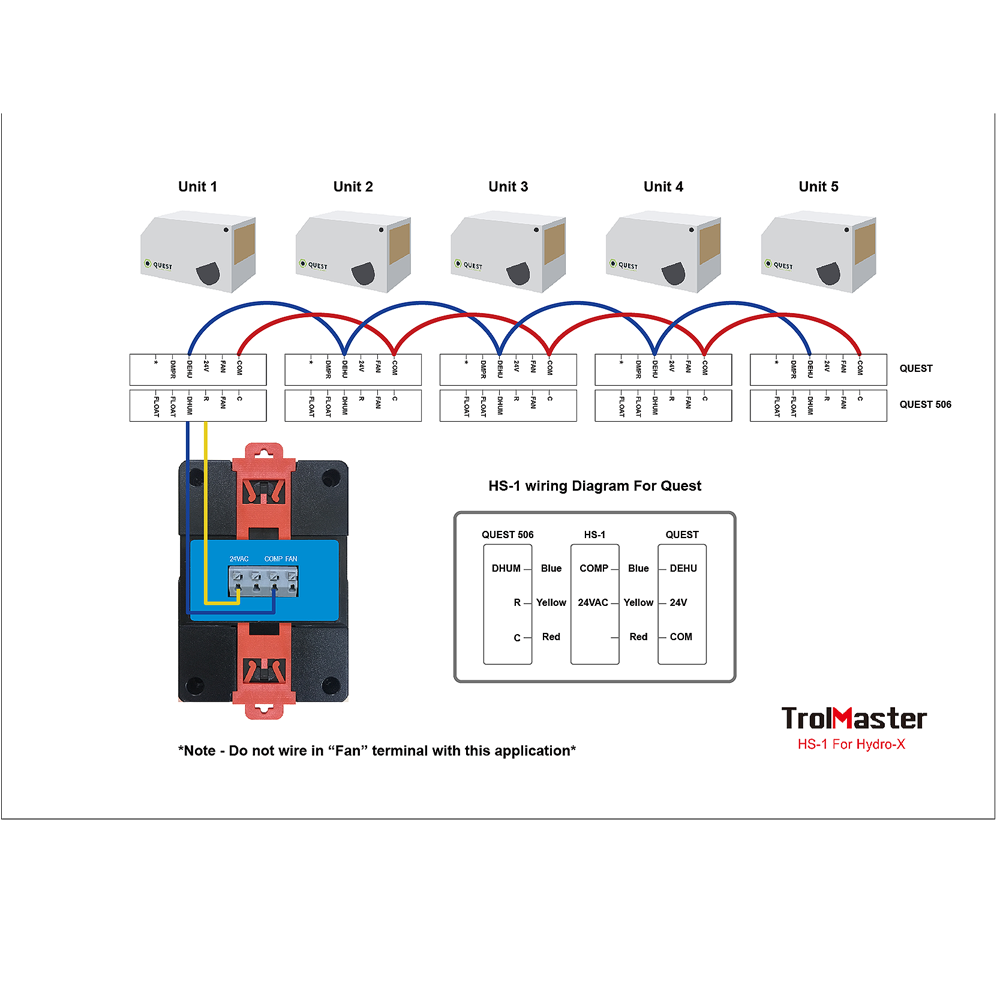

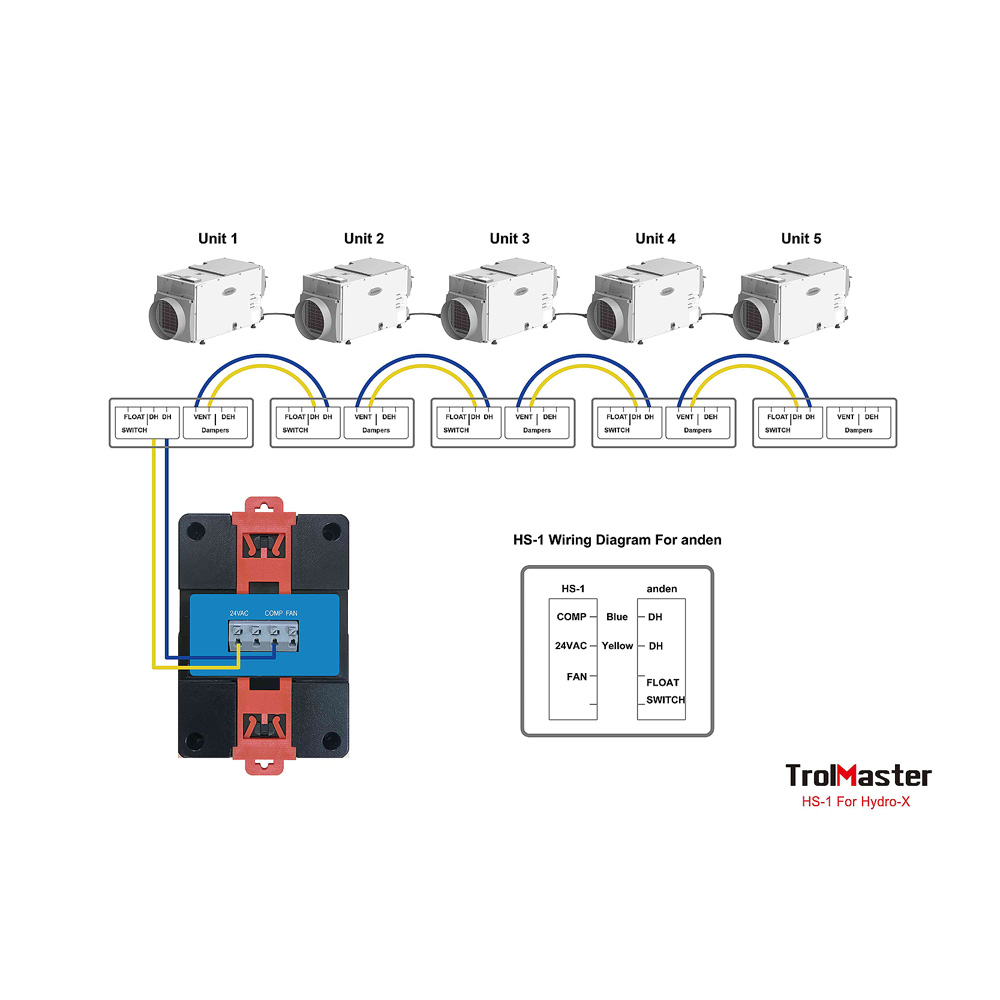

The TrolMaster Humidistat Station (HS-1)  is used to control commercial dehumidifiers. Most larger / commercial dehumidifiers have a “low-volt” control option so the dehumidifier can be controlled by an external humidistat. The HS-1 works and is wired exactly like an external humidistat. The HS-1 is the best way to control your dehumidifiers by eliminating the need to control the high-amperage / inrush current associated with dehumidifiers.

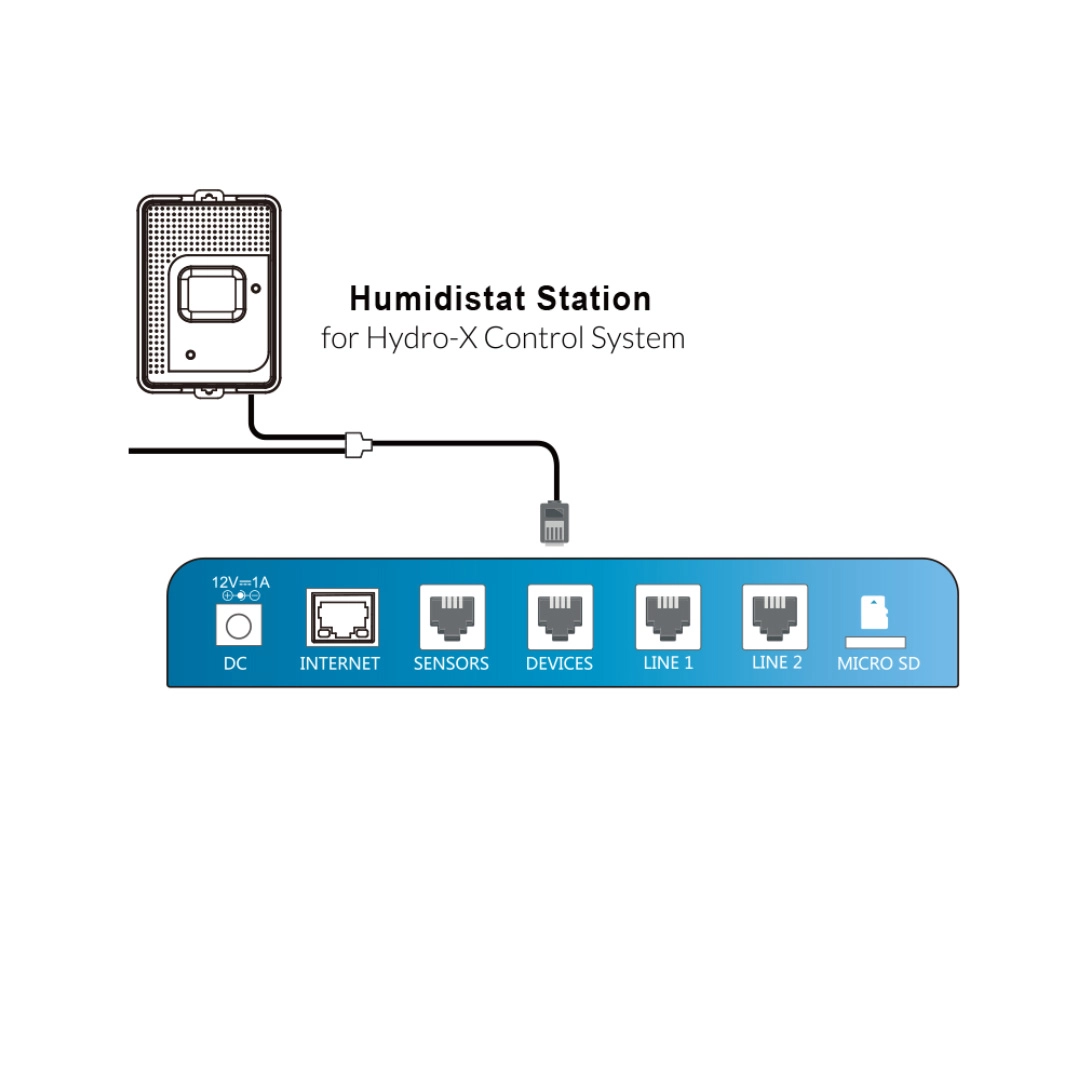

Use in conjunction with either the TrolMaster Hydro-X (HCS-1) controller or the TrolMaster Hydro-X Pro (HCS-2)

TrolMaster Humidistat Station Specification:

  • LCD Display, Easy Operation
  • Seamless Connection with Hydro-X
  • Micro-SD for Firmware Upgrade
  • Address Assignment
  • Plug & Play
  • Output Voltage:                         24V
  • Maximum Current:                    1A
  • Working Environment:             Temperature 32-122°F, Humidity=90%
  • Packaging Dimensions:           160mm(L) x 86mm(W) x 86mm(H)
  • Degree of Ingress protection: IP20
  • Input Voltage:                           12V

Whats in the Box?

  •  Humidistat Station (HS-1)
  • 16ft RJ12 Cable
  • 4ft RJ12 Cable
  • RJ12 T-Splitter
