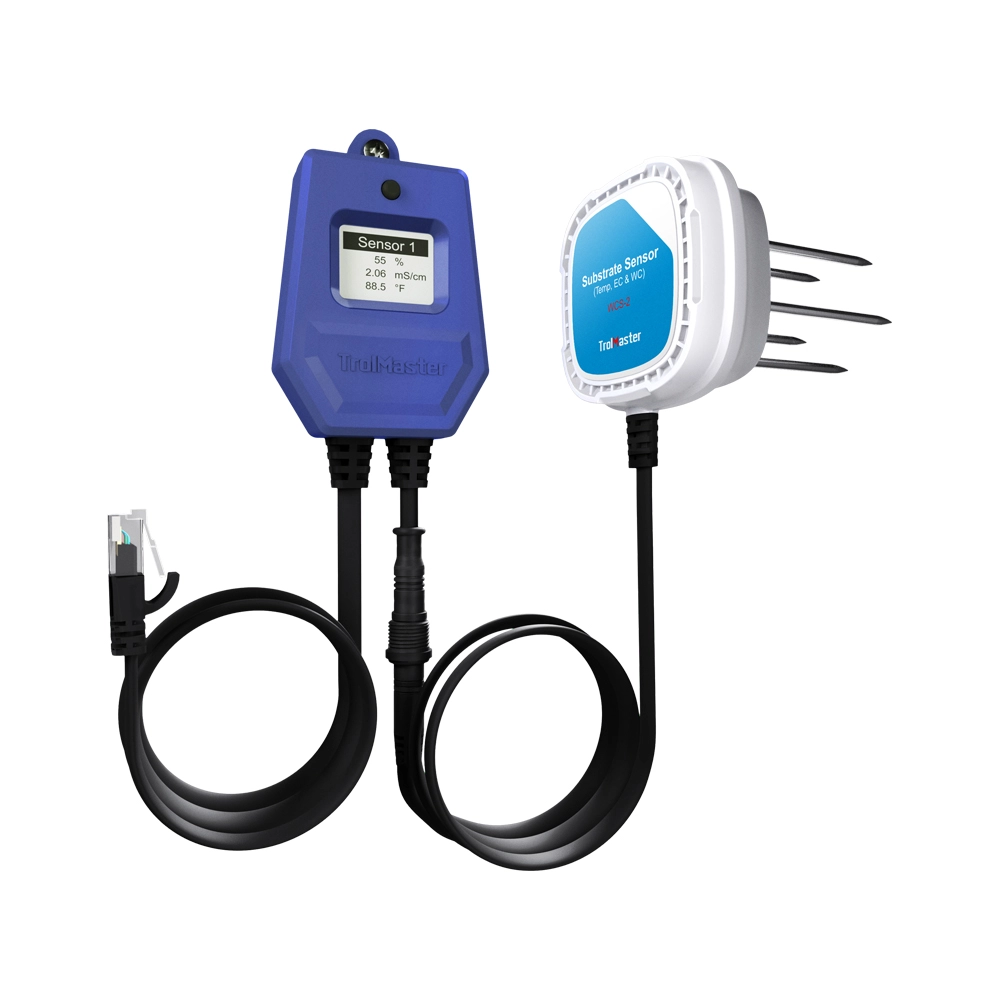

The TrolMaster water content 3 in 1 sensor (WCS-2) monitors your grow medium for proper water content % and EC.  TrolMaster understands that today’s method of “crop steering” involves more precise control of the amount of nutrient and the nutrient strength within the grow medium in order to achieve the best results. The WCS-2 Water Content Sensor provides the users with an accurate and simple way to monitor your grow medium. The WCS-2 consists of a multi-prong sensor assembly that is inserted into your grow medium. Once the WCS-2 is calibrated to your grow medium and your nutrients, you will get constant readings. The TrolMaster Water content sensor provides the actual water content within the grow medium, the temperature of the grow medium and also the EC. You can even select alarm “limits” for each variable being monitored by the WCS-2 to send remote notifications through the TrolMaster or TM+ apps.

Trolmaster Aqua-X Water Content 3 in 1 Sensor features:

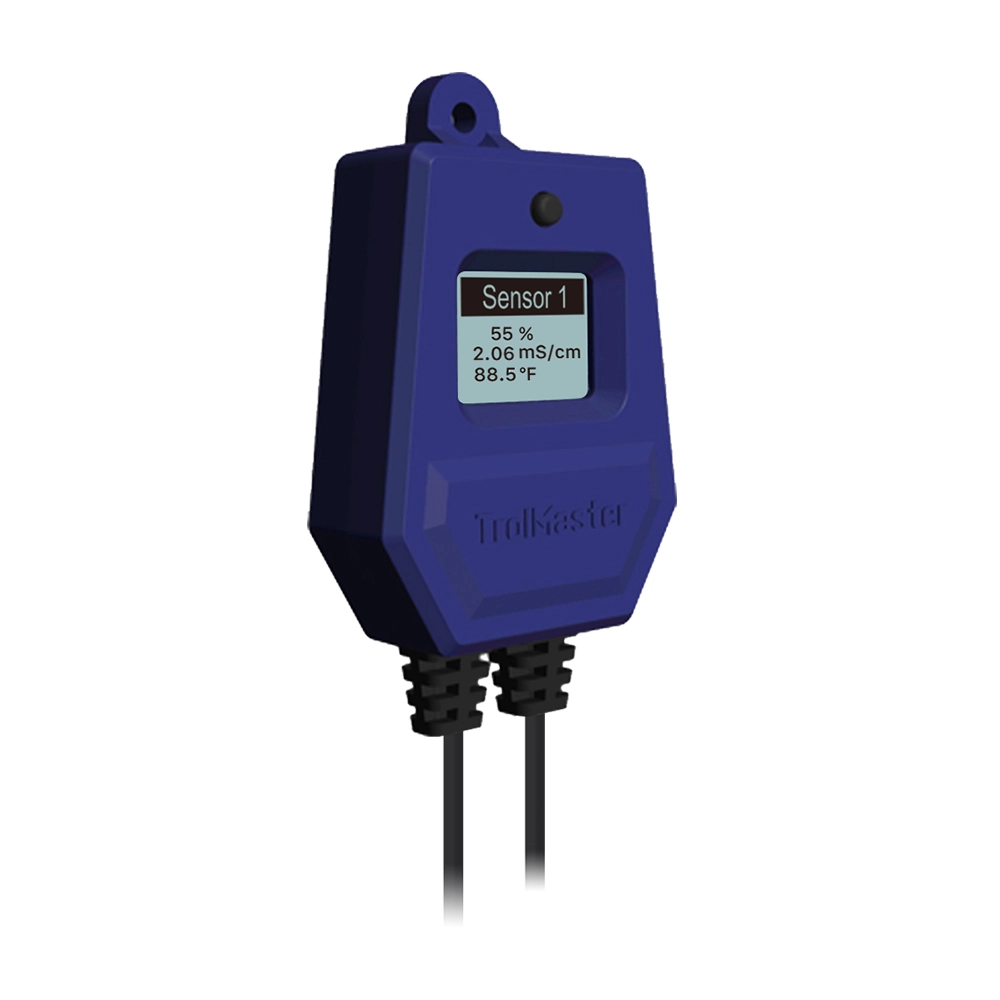

• LCD Display, easy operation
• Addressing button
• Real-time measuring of water content, temperature & EC of growing medium
• Alarm and mobile notification when setpoint exceeded

Specification:

Absolute Maximum Ratings

• Supply Voltage: 10.8 – 13.2 volts
• Input Current: 100 – 200 mA
• Operating Current: 140 typical mA (supply voltage = 12V)
• Operating Temperature: 32°- 122°F
• Storage Temperature: 0°- 140°F
• Humidity: ≤90%

Measurement Performance

Water Content (WC)

• Range: 0 – 10 %
• Resolution: 1 %
• Accuracy: -2 – +2%

Temperature

• Range: 0°- 122°F
• Resolution: 0.1 °F
• Accuracy: -1 – +1 °F

Electrical Conductivity (EC)

• Range: 0 – 5 mS/cm
• Resolution: 0.01 mS/cm
• Accuracy: -0.2 – +0.2 mS/cm

trolmaster water sensor WCS-2 Manual
