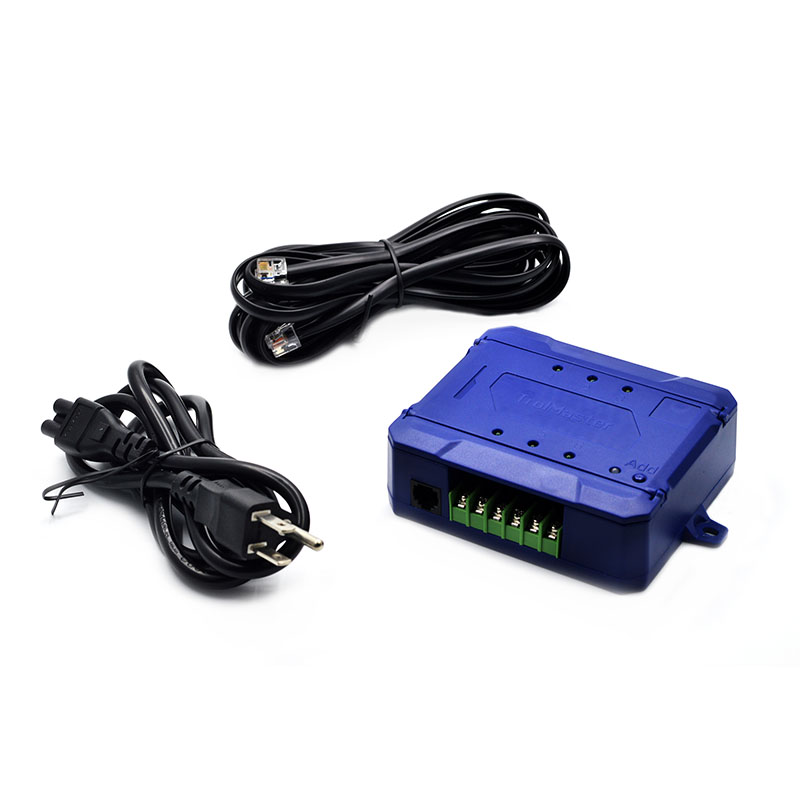

The TrolMaster 24v Control Board (OA6-24) is designed to control multiple 24vac solenoid valves. It is specially designed for the Aqua-X irrigation Control System.

It provides an easy and efficient method to control up to 6 valves… each with individual timer settings. Up to 5 OA6-24 can be connected to a single Aqua-x providing a maximum of 30 individually controlled outputs to connect to your solenoid valves. The TrolMaster Aqua-x can also provide a “master pump link” by using a DSP-1 along with the OA6-24. Connecting a DSP-1 to the OA6-24 provides an automatic “pump link” between the DSP-1 and the OA6-24. When any of the 24vac irrigation zones are activated on the OA6-24, the DSP-1 will automatically turn on the pump.

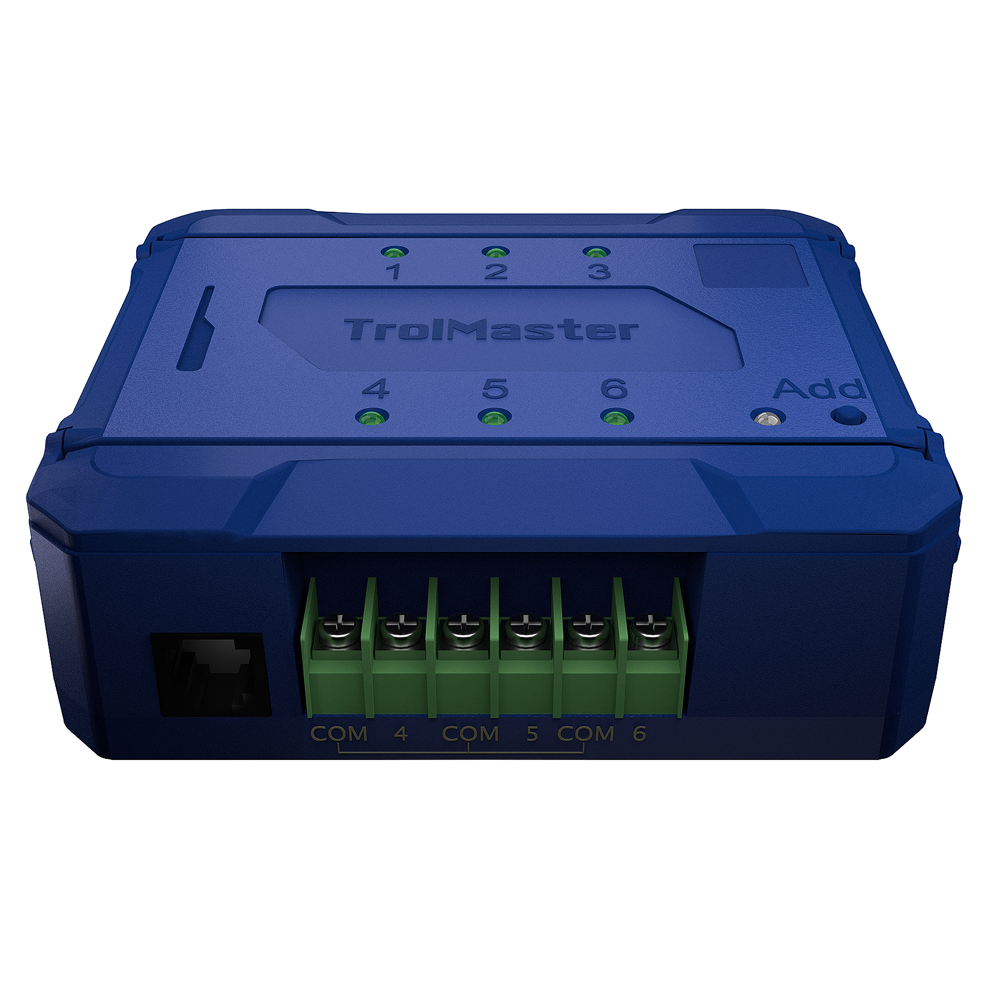

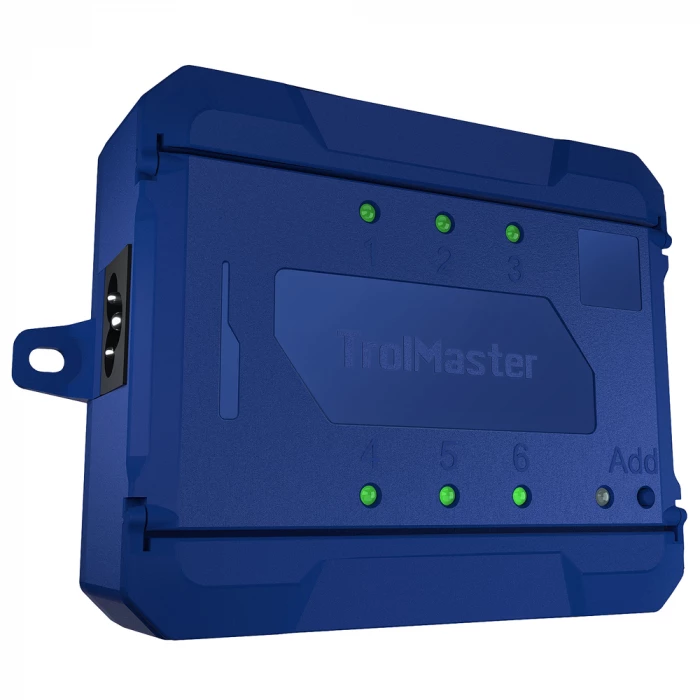

24v Control Board features:

• LED Power Indicator
• Addressing Button
• 6 Individually-Controlled 24V Outputs
• Individual LED Indicator for Each Output
• Double RJ12 Cable Sockets for Daisy Chain Connectivity

Specification:

• Input Voltage:                                    110-240 VAC
• Max Input Current:                             0.42A
• Max Output Voltage/Current:            24VAC/0.15A per output
• Working Environments:                    Temperature 32°-122°F, Humidity=90%
• Packaging Dimensions:                    275mm(L) x 164mm(W) x 40mm(H)

OA6-24_User+Manual
