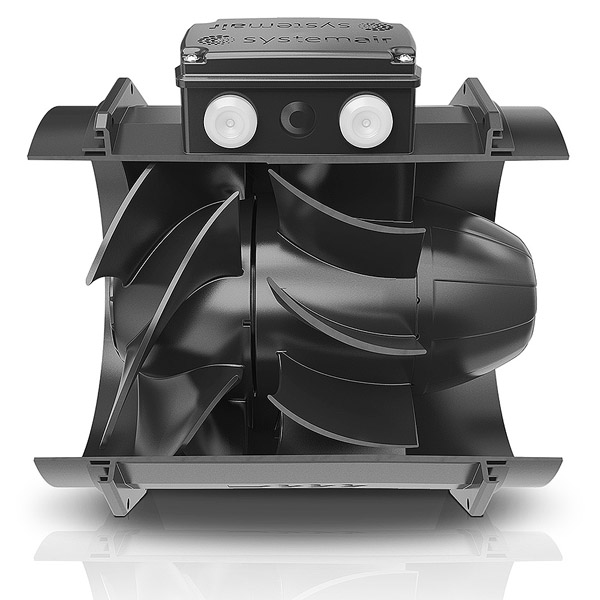

Revolution Vector EC Fan is the latest creation from SystemAir, one of the best known, world leading manufacturers of inline duct fans. The Revolution Vector EC Fan, improves upon the RVK in a number of ways; not only are they the quietest, most powerful inline duct fans ever produced, they also provide unparalleled control, allowing the fan to run at even the lowest speeds without producing the mind-numbing hum that growers detest.

EC fans (Electronically commutated) use a Voltage Control Signal (0-10.0V) to increase or reduce the fan motor speed; this method of speed control allows accurate & silent adjustment of the motor.

PLEASE NOTE THE FAN WILL REQUIRE THE G.A.S EC FAN CONTROLLER TO OPERATE.

Features:

• Flow optimised, free running plastic axial impeller

• Balanced impeller reduces vibration and noise

• Capability to put fans in-series to double pressure

• Thermal motor protection

• Maintenance free and reliable quality – made in Germany

• More efficient frictionless, brushless motors compared to traditional AC fan motors

• High airflow pressure minimises airflow loss through longer duct runs

• Saves on running costs – It uses less electricity than standard fans & even less when slowed down

• One piece casing construction – Prevents air leakage through fan case

• CarboAir Filters are designed to match the Revolution Fans perfectly – No guesswork required!

• 5 Year Guarantee

Specification:

Fan 150mm (6″) 796m3/hr

• Voltage: 230v

• Input: 76W

• Air Flow 796 m³/ph

• Air Flow with Match CarboAir Filter: 655m³/ph

Fan 200mm (8″) 1332m3/hr

• Voltage: 230v

• Input: 117W

• Air Flow 1332 m³/ph

• Air Flow with Match CarboAir Filter: 1005m³/ph

Fan 250mm (10″) 2077m3/hr

• Voltage: 230v

• Input: 165W

• Air Flow 2077 m³/ph

• Air Flow with Match CarboAir Filter: 1610m³/ph

Fan 315mm (12″) 3784m3/hr

• Voltage: 230v

• Input: 528W

• AirFlow 3784 m³/ph

• Air Flow with Match CarboAir Filter: 2800m³/ph
