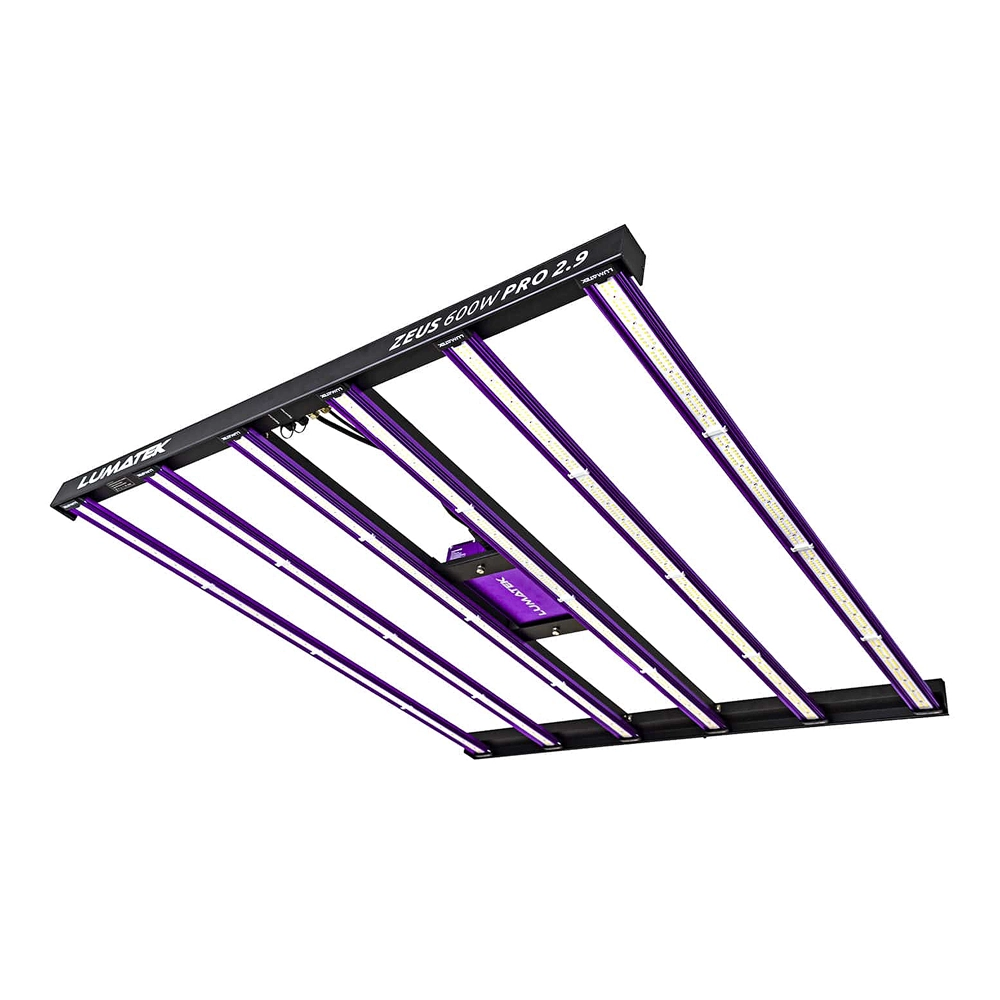

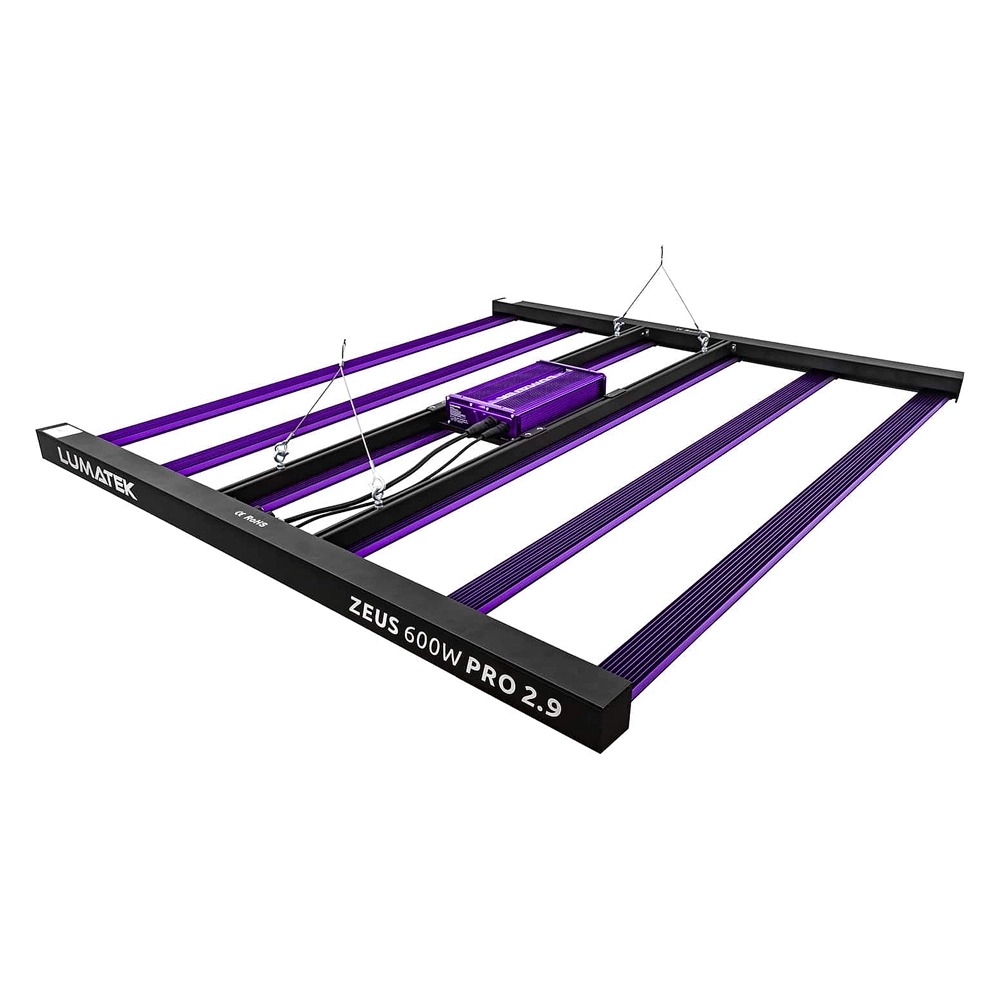

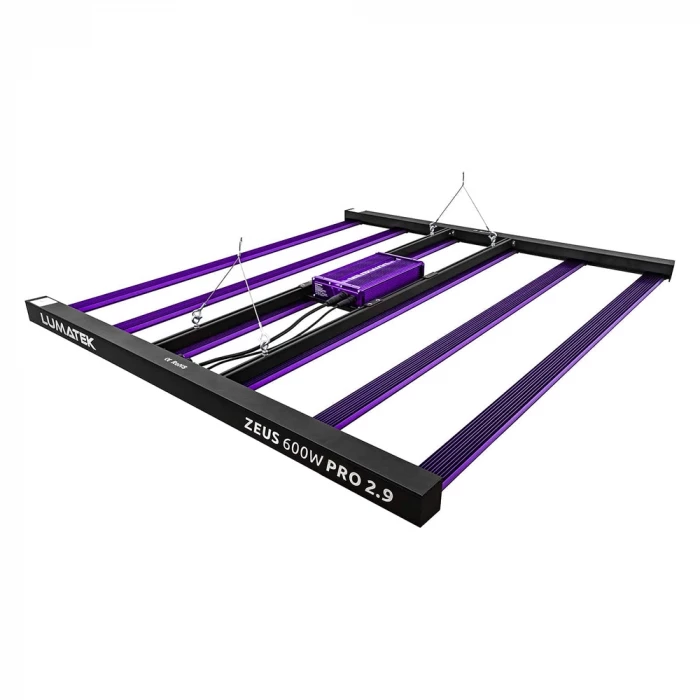

The Lumatek Zeus 600w Pro 2.9 is a high specification, linear multi-light bar fixture producing very high levels of PPF of 1770 µmol/s & very high efficacy of up to 2.9 µmol/J.
Lumatek Pioneers of the innovative, modular, magnetic LED light bar design.
With advances in technology and fixture performance, high quality LED horticultural lighting is now a credible option offering significant return on investment. Lumatek’s full spectrum horticultural LED solutions balance light quality (spectra) with light quantity (intensity and duration) ensuring an even light distribution and uniform spread.

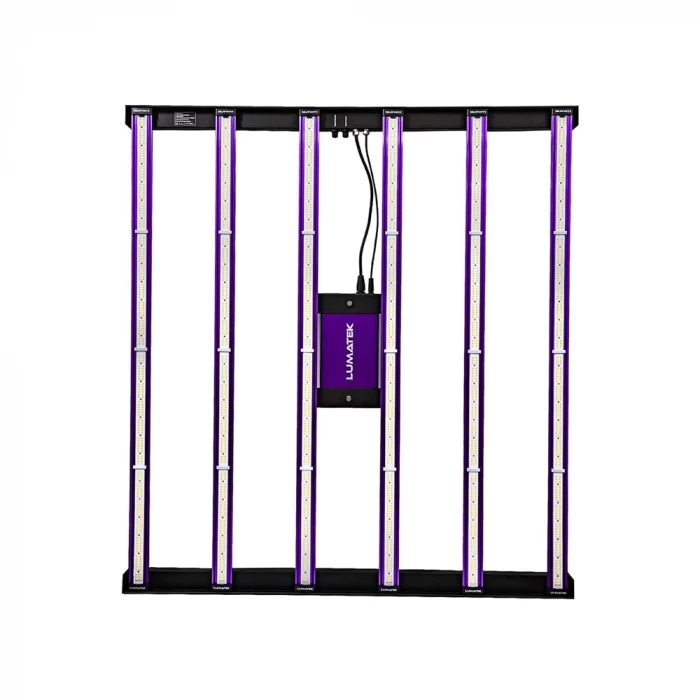

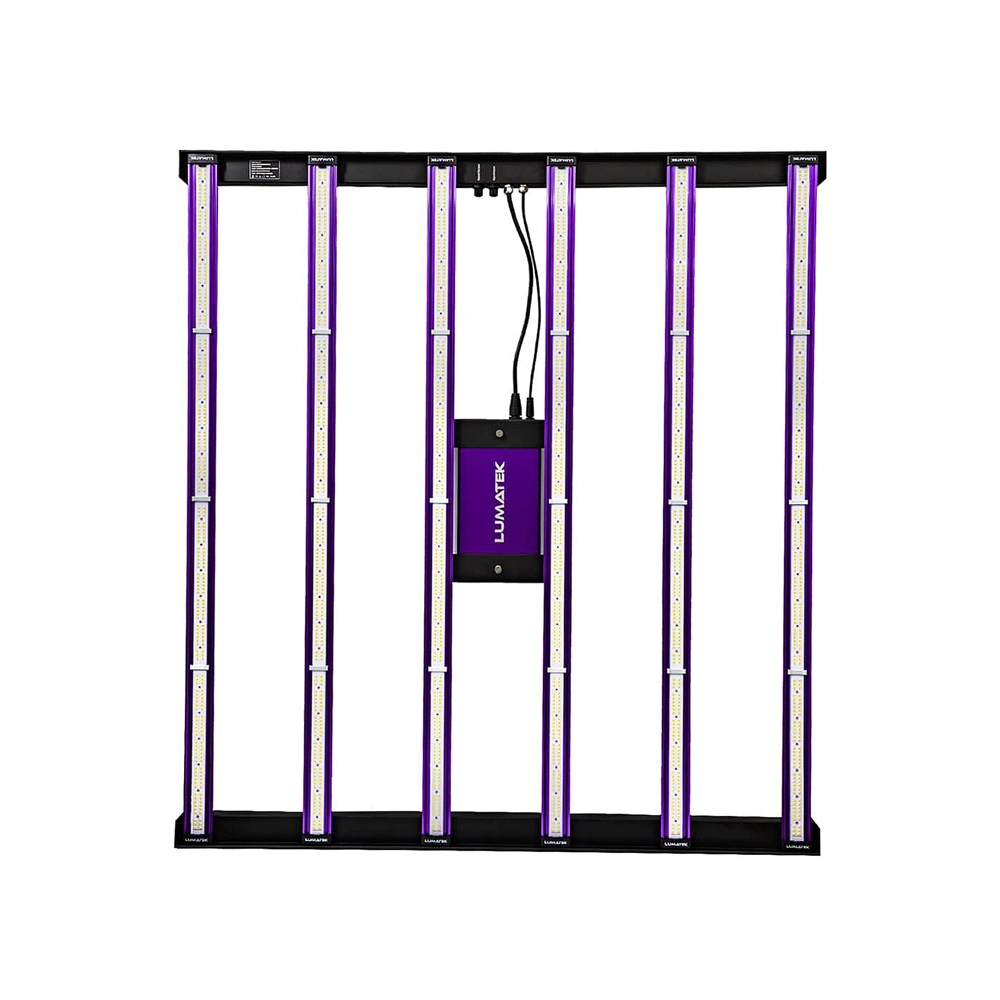

The array of the Lumatek Zeus 600W Pro 2.9 creates a uniform spread of light at short distance to the crop enabling single source grow lighting for multi-layer cultivation systems, single benches in low rooms and grow tents. This fixture will cover perfectly 1.4×1.4m for Flowering and 1.5×1.5m for Veg.

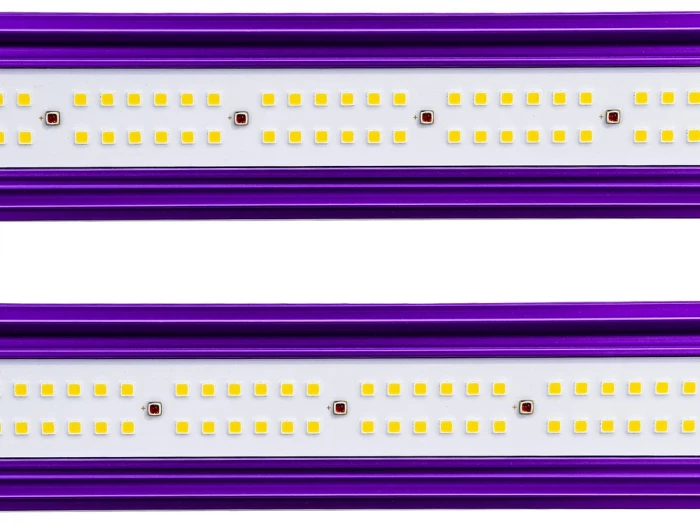

The new Lumatek Zeus 600w Pro is built using high quality Lumatek drivers and latest generation higher efficiency top bin LEDs from Lumileds and Osram. These industry leading diodes generate a full-spectrum light source ideal for vegetative and flowering cycles.
Another new feature of this line is the Clear Glue protection cover technology on the LED bars. This results in higher light transmittance of 99% without light loss, extended lifetime of diodes, extra corrosion resistance and high waterproof of IP65. For basic maintenance the bars can be cleaned with a wet cotton cloth.
For different cultivars, propagation and vegetative growth periods the Zeus 600W Pro 2.9 may be dimmed without losing efficiency. The high efficiency and low powered LED configuration reduces the temperature of the LEDs increasing the output and improving light maintenance.
LUMATEK ZEUS 600W PRO SPECIFICATIONS:
PRODUCT CODE: LUMLED010
EFFICACY: up to 2.9 µmol/J
PPF: 1770 µmol/s
INPUT VOLTAGE: 220-240V, 50-60Hz
INPUT POWER: 615W (±5%)
FOOTPRINT: 1.4×1.4m
WATERPROOF: IP65
LIFETIME: +60 000 hrs
LIGHT DISTRIBUTION: 120°
LIGHT SOURCE: Higher Spec Osram and Lumileds Diodes
DIMMABLE: OFF-25%-50%-75%-100% with 0-10V Light Dimmer (Included)
EXTERNAL CONTROL: With Lumatek Digital Panel Plus 2.0
WEIGHT: 13.5 Kg
DIMENSIONS: 1091×1182.4×51.9mm
SPECTRUM: Full Spectrum F
BTU (WITH DRIVER ATTACHED): 2201 BTUs/h (Max)
BTU (WITH DRIVER REMOTE): 2047 BTUs/h (Max)
Controllability:
This Lumatek LED fixture can also be externally controlled with a Lumatek digital lighting controller (Digital Panel Plus 2.0) featuring light timing, automated dimming (1% increments), temperature safety control, Sunrise & Sunset Mode for up to 100 fixtures per controller.
Universal Control Systems Compatibility
Lumatek LED Fixtures can be fully controlled with either the Lumatek Digital Panel Plus 2.0 or with any other Control System that utilises 0-10V output signal such as the Trolmaster Hydro-X controllers. Even if your Universal Controller has an RJ port interface, you can still run our LEDs by using a signal converter RJ to 0-10V control adaptor.
WHY USE LED FIXTURES?
- Benefits include energy savings; Lumatek LED solutions demonstrate the potential to save 40% on electricity and studies indicate that LED-lit canopies can generate more yield per kWh.
- Plant and crop performance; initial studies indicate growers using LED lighting may experience yield increases and changes in cannabinoid and terpene profiles, leading to more consistent medicinal product profiles from harvest to harvest.
- Flexible light intensity; Lumatek LEDs can be dimmed to adjust PPF level to suit crop and growth stage without changing spectral power distribution or losing efficiency.
- Less maintenance; Lumatek LEDs are rated for 60,000 hours use supported by a market leading 5 Year warranty.
- Reduced HVAC; Lumatek LEDs are highly efficient and a less wattage consumption means less heat released into the space, allowing for potentially lower HVAC loads and operating expense.

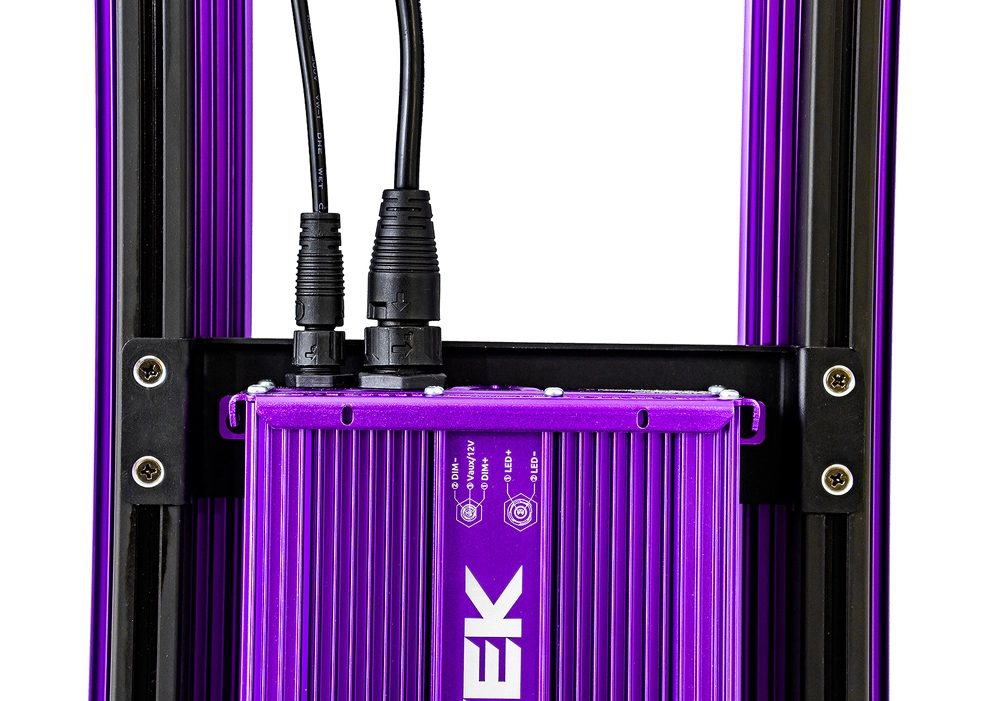

Safety; Lumatek LED drivers are intelligent and feature full circuit protection including over/under voltage, short circuit and over temperature protection. Lumatek Zeus LED drivers also feature auto-power increase/decrease to match the amount of light bars connected to fixture. All Lumatek LED fixtures are CE certified LVD and EMC compliant.
