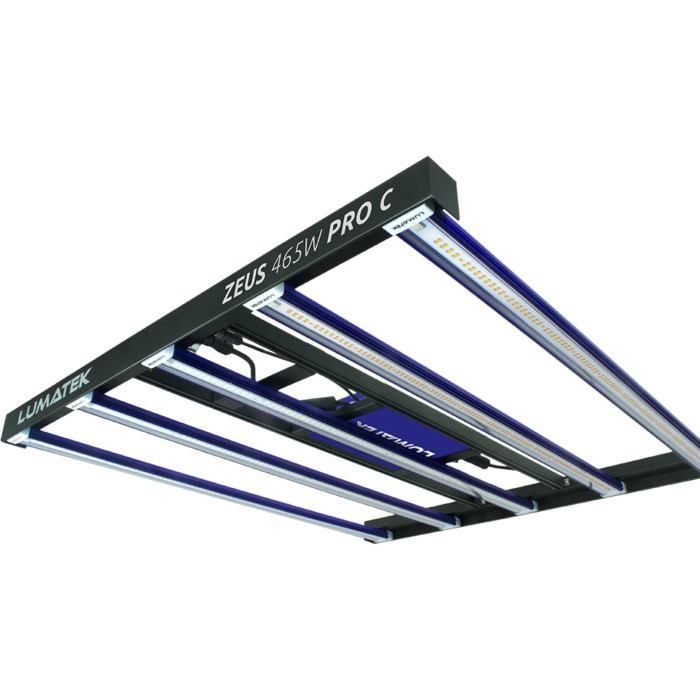

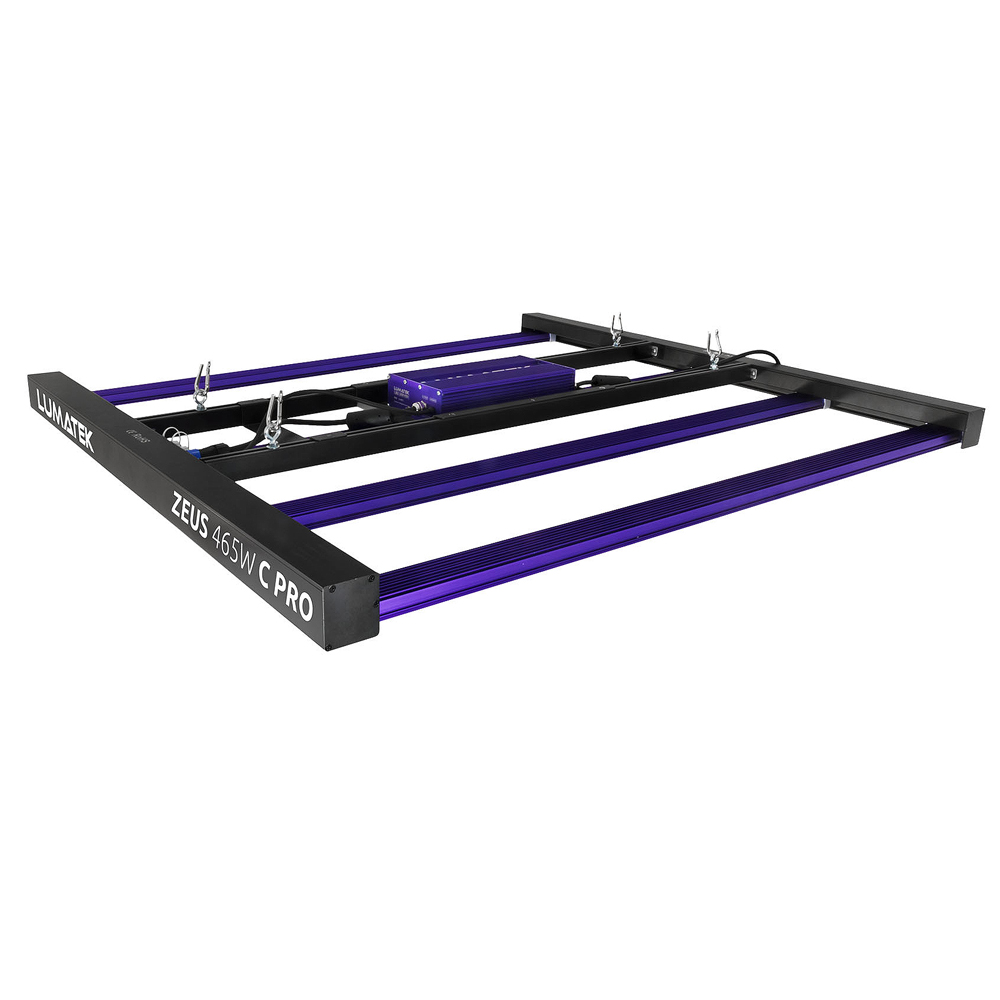

LUMATEK ZEUS 465W COMPACT PRO LED. Industry Leading €/µmol ratio.
The higher specification Lumatek Zeus 465W Pro Compact LED is a linear multi-light bar fixture producing very high PPF of 1256 µmol/s and a Photon Efficacy (fixture efficiency) of 2.7 µmol/J.
With the advances in technology and fixture performance, high quality LED horticultural lighting is now a credible option offering significant return on investment to cultivators. Lumatek full spectrum horticultural LED solutions balance light quality (spectra) with light quantity (intensity and duration) sufficient to provide single-source lighting for the entire grow cycle from vegetative through flowering period.

Pioneers of the innovative, modular, magnetic LED light bar design.

The array of LEDs create a uniform spread of light at short distance to the crop enabling single source grow lighting for multi-layer cultivation systems, single benches in low rooms and grow tents.

The Zeus is built using high quality Lumatek drivers and top bin LEDs from LUMLED and Osram generating a full-spectrum light source ideal for veg and flowering cycles.

For different cultivars, propagation and vegetative growth periods the Zeus may be dimmed without losing efficiency. The high efficiency and low powered LED configuration with five 93W LED bars reduces the temperature of the LEDs increasing the output and improving light maintenance.The fixture is accompanied by a 5 year manufacturers warranty.

FIXTURE CONTROLLERS

The lumatek Zeus PRO can be externally controlled with a Lumatek digital lighting controller which features automated dimming, temperature safety control, sunrise and sunset mode for up to 100 fixtures per controller. Compared to regular open HPS/MH fixture solutions the Zeus can achieve 30-40% less HVAC capacity.

Lumatek LED Fixtures can be fully controlled with either the Lumatek Digital Panel Plus 2.0 or with any other Control System that utilises 0-10V output signal. Even if your Universal Controller has an RJ port interface, you can still run Lumatek’s LEDs by using a signal converter RJ to 0-10V control adaptor.

FEATURES

• Very high efficacy 2.7 µmol/s/J
• High PPF output for high intensity 1256 µmol/s
• High quality Lumatek LED drivers
• Top bin LEDs
• Balanced full spectrum
• External control with Lumatek Control Panel
• Replaceable 93W magnet light bars
• Fully Dimmable 25%, 50%, 75%
• User friendly Plug & Play Assembling
• Detachable driver for remote use

ITEMS INCLUDED:

• 5 x Lumatek 93W Pro Full-Spectrum Magnet Light Bars
• 1 x Lumatek 465W Driver with Connecting Cables
• 1 x LED Structure with Connecting Cables

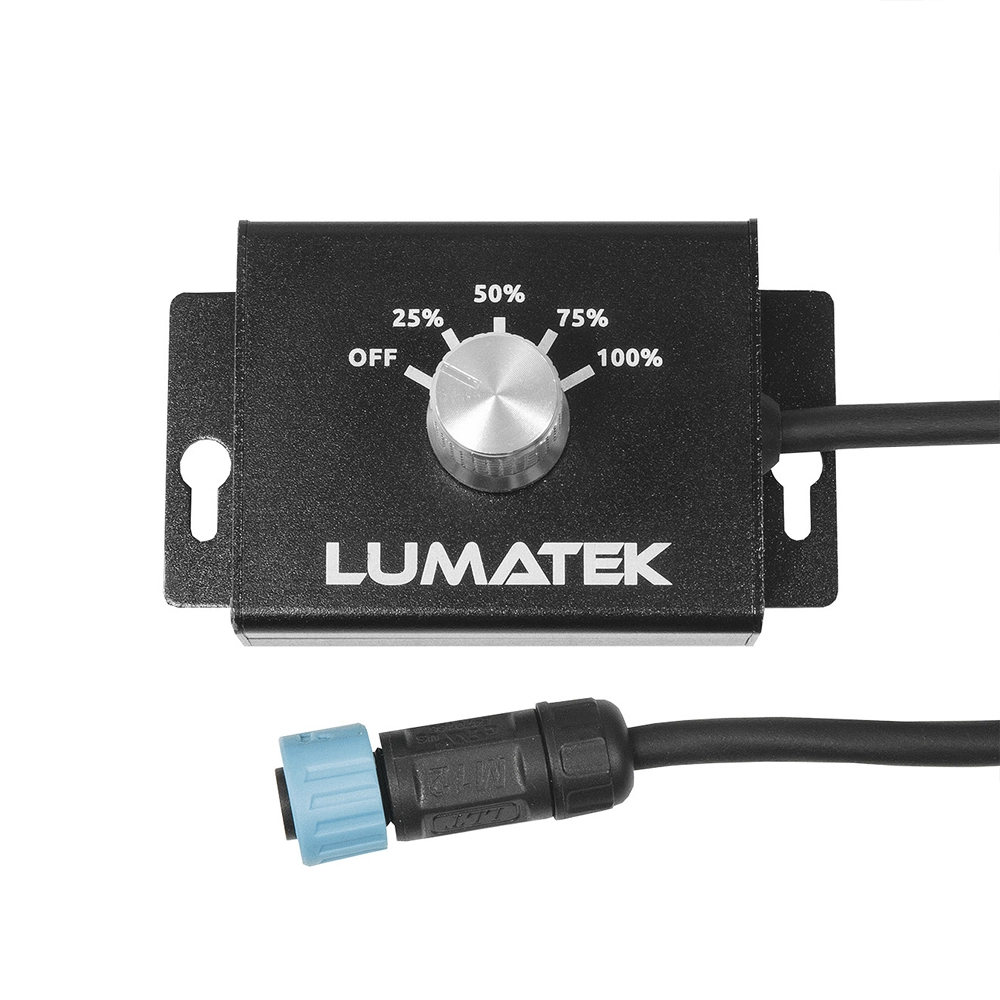

• 1 x 0-10V Light Dimmer + Velcro
• 2 x Metal Cable Hangers
• 1 x Manual

TECHNICAL SPECIFICATION



FIXTURE INPUT VOLTAGE – 220 – 240V 50/60Hz AC

INPUT POWER – 465W

INPUT CURRENT 230V 100% o/p – 2.0A (2.6A max)

POWER FACTOR – ≥0.95

PPF – 1257 umol/s

EFFICACY – 2.7 umol/J

SPECTRUM – Full spectrum

LIGHT SOURCE – LUMATEK LUMLED (W) & Osram (R) LED

DIMENSIONS – 998mm (L) x 900mm (W) x 74.2mm (H)

WEIGHT – 11kg

LIFESPAN – ≥50000H

WORKING TEMPERATURE – 20° – +40°c

WORKING HUMIDITY – 20% – 90%

WATERPROOF – IP^%

BEAM ANGLE – 120°

MANUAL DIM/EXTERNAL LIGHTING CONTROLLER – 0-10v analog protocol

WHAT SIZE FIXTURE DO I NEED?

Lumatek provide a handy tool to help you choose the correct fixture for your grow room or tent here . Lumatek have also produced a useful article highlighting the considerations when changing from HPS to Led fixtures.

Or for further advice on larger set ups please contact our staff who are skilled in set up and operation of multiple fixtures grow rooms.
