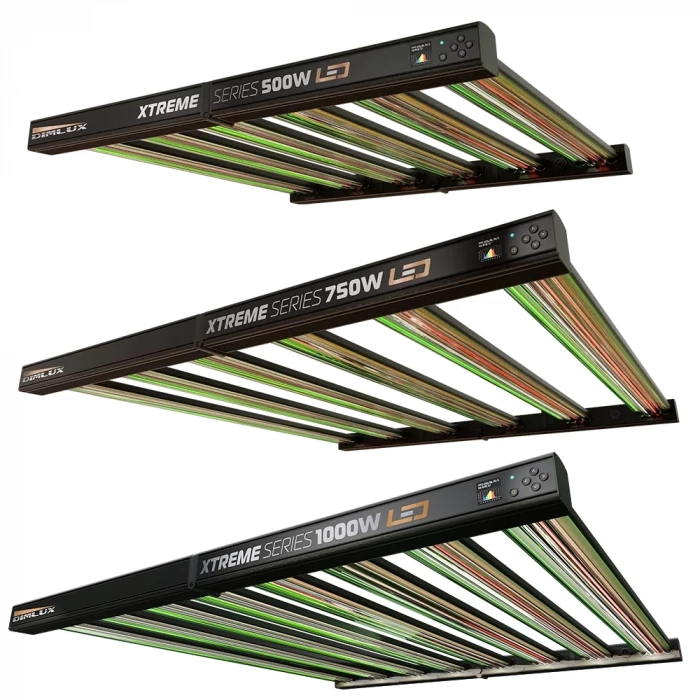

The Dimlux Xtreme Series is available in 500w, 750w and 1000w fixtures. And is also available in two different spectra; either with Far-Red or without.
12 Years ago, Dimlux introduced the first ever groundbreaking remote controlled HPS ballast in combination with the Maxi Controller; The Dimlux Expert Series. Today, Dimlux introduces the smartest, most efficient and most powerful grow light on the market, the Dimlux Xtreme Series LED!
With this innovative LED fixture, Dimlux sets a benchmark for horticultural lighting. With patented technology, advances in LED technology, and optimal thermal design, the Dimlux Xtreme Series LED will be the preferred option, offering significant return on investment to cultivators. Dimlux’s adjustable PhytoVegSpec® Indoor grow spectrum combines full control over light quality (spectral flexibility) and quantity (intensity and DLI). This ensures a uniform spread and even light distribution with extreme penetration into the canopy.
The Dimlux Xtreme Series LED produces ultra-high levels of PPFD, evenly spread over a 1.5×1.5 m grow area, with a full grow spectrum, producing consistently high quality & high yield of indoor crops.
The Dimlux Xtreme Series LED can be dimmed without losing efficiency. The grower is able to program the spectrum and output power to suit stages of growth and times of the day period.
Dimlux, High Photon Output and Efficacy:
Dimlux LEDs were designed using the top bin emitters paired with high voltage drivers to deliver extremely high light levels. Dimlux’s 1000w LED fixture can produce over 2000 umol m2 s1 – about as much as high noon sun in the middle of summer. High light output equals larger flowers.
Clocking in at over 2.9 umol/J photon efficacy, Dimlux’s 1000w LED grow light is one of the most efficient full spectrum lights available.
Why Far red?
Studies have shown that combining red and far red increases photosynthetic rates beyond the sum of the individual contributions. Higher photosynthetic rates equate to larger flowers. This is a case where one plus one equals greater than two. The Emerson Enhancement Effect chart below illustrates.
PRO-TIP: Far Red does have its considerations. In sensitive plants far red can cause plants to stretch more. If your grow is height challenged you should consider a fixture that does not include it.

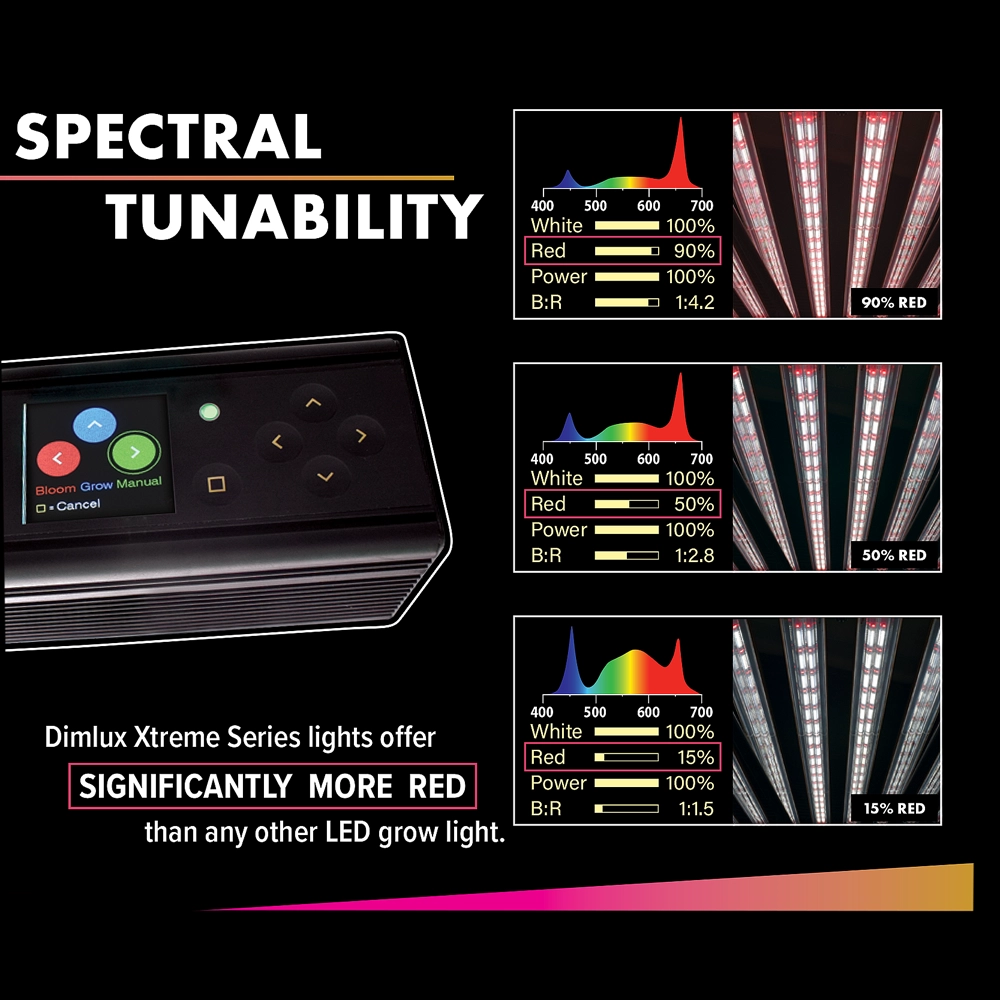

Spectral Tunability:
Many growers swear that there is a link between more red light in their Spectrum and larger flowers. While the science is still out the Dimlux Xtreme Series will allow growers to test this theory themselves.
The white and red(s) LEDs are on separate channels and can be controlled independently. This allows the grower to change the spectrum of light that the plants receive. Dimlux LED grow lights can be turned from 1:1 to more 1:10 blue-to-red ratio (but not not recommended to exceed 1:4.5). Most static spectra max out with a 1:2 blue-to-red ratio. While other tunable fixtures can technically achieve these same ratios they rely on turning down the while LEDs which results in a severe decrease in total light output.

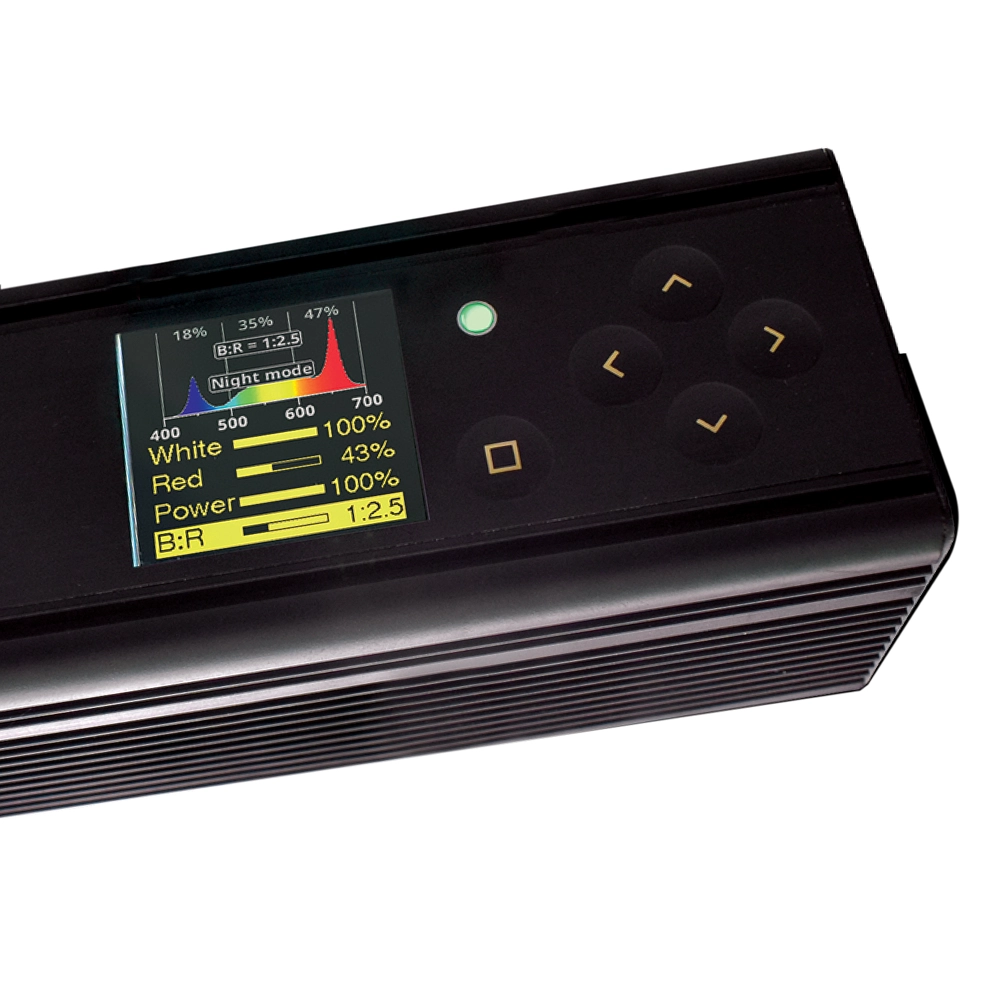

Dimlux Xtreme Series On Board Display:
All Dimlux Xtreme LEDs come with an on board display. It is used to configure the light when operated ‘stand-alone’ (no external controller) as well as display the current spectrum.
Dimlux’s Doppler Radar Proximity Sensor?
When working at night growers typically use green light to not break the night cycle of photoperiodic plants. Dimluxs Extreme series contain a proximity sensor that will automatically turn on green working lights when the motion of the grower detected. Once the the grower moves away the light will shut off after a user designated period. An added feature in the not too distant future will be the ability to control UV add-on-bars. UV in all its forms is potentially hazardous to work under. While small exposures to UV-A are generally considered safe, UV-B contains much more energy and caution should be taken when working near it. With the use of the radar UV add-on-bars can be automatically turned off when someone is near.
DIMLUX UV ADD-ON-BARS WILL BE AVAILABLE SOON!
Plant Temperature Camera:
The Dimlux Plant temperature Camera has been specifically designed for monitoring plants. The majority of other temperature cameras are designed to monitor building materials, hot liquids etc. Plants Transpiration can cause these cameras to not read accurately. Unlike temperature guns that are designed to measure an exact spot, this camera detects a large area and so can see more of your canopy for more accurate results.
Specifications – Xtreme Series 500w LED
Light Output (PPF) | 1500 μmol/s |
System Efficacy | 2.85 μmol/J @ 240V AC |
AC Input Power | 540W @ 230-240V AC |
AC Input Voltage | 120-277V AC, 50/60Hz |
Beam Angle | 90° × 120° |

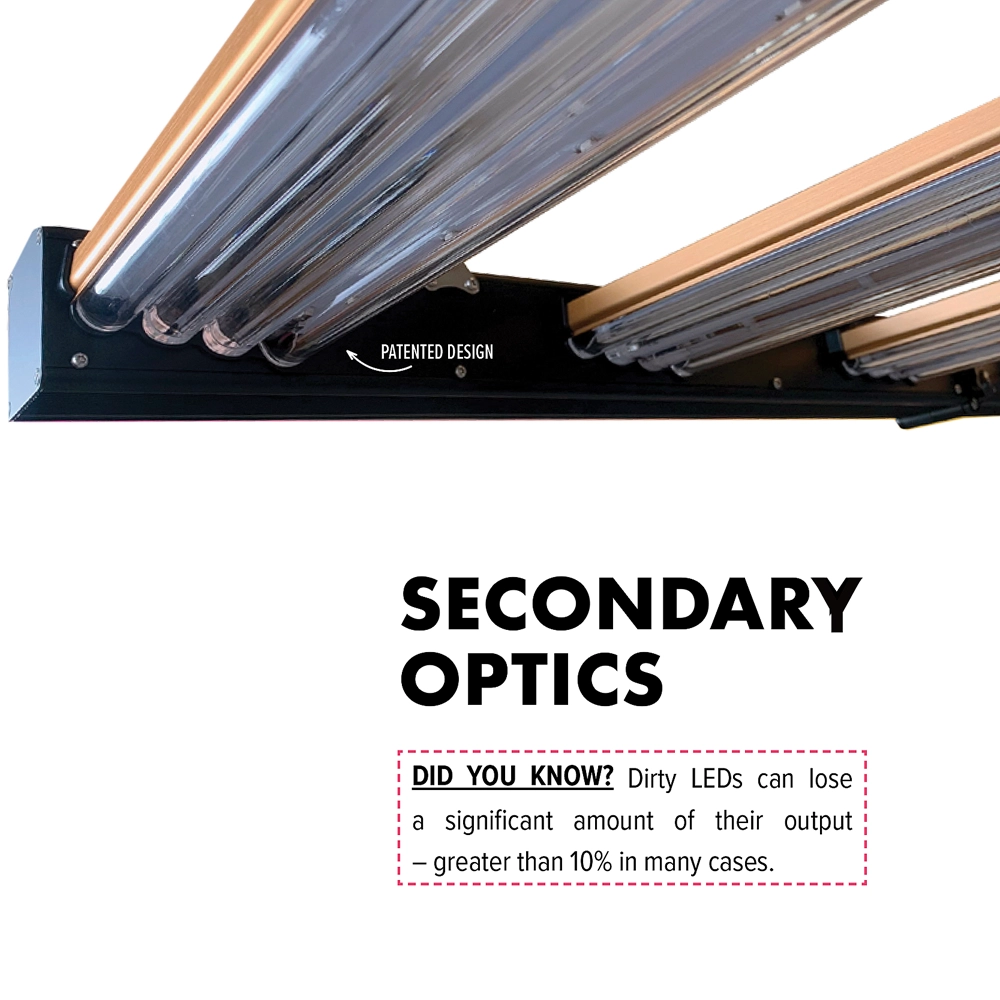

Optics | Patented Deep Penetration Ultra High Transmittance Lens |
Auxiliary Light | Patented Light Pipe Multi Color 65k |
Proximity sensor | Doppler Radar |
Mounting Height Above Canopy | 20-50 cm / 7.8-19.7 in |
Thermal Management | Passive |
Max. Ambient Temperature | 40°C / 105°F |
Control | By Maxi Controller or Internal Controller |
Smartports (3x) | Interlink, Plant Temperature Sensor, Light Sensor |
Display For Spectrum and GUI | 1.54″ 65k Color IPS |
Total Harmonic Distortion (THD) | < 10% |
Lifetime L90 | > 50,000h |
IP Rating | IP65 |
Certifications | CE, UL 8800, UL 1598 Wet Location, DLC |
Warranty | 5 Year Standard |
Specifications – Xtreme Series 750w LED
Light Output (PPF) | 2276 μmol/s |
System Efficacy | 2.92 μmol/J @ 240V AC |
AC Input Power | 799W @ 230-240V AC |
AC Input Voltage | 120-277V AC, 50/60Hz |
Beam Angle | 90° × 120° |
Optics | Patented Deep Penetration Ultra High Transmittance Lens |
Auxiliary Light | Patented Light Pipe Multi Color 65k |
Proximity sensor | Doppler Radar |
Mounting Height Above Canopy | 30-65 cm / 11.8-25.5 in |
Thermal Management | Passive |
Max. Ambient Temperature | 40°C / 105°F |
Control | By Maxi Controller or Internal Controller |
Smartports (3x) | Interlink, Plant Temperature Sensor, Light Sensor |
Display For Spectrum and GUI | 1.54″ 65k Color IPS |
Total Harmonic Distortion (THD) | < 10% |
Lifetime L90 | > 50,000h |
IP Rating | IP65 |
Certifications | CE, UL 8800, UL 1598 Wet Location, DLC |
Warranty | 5 Year Standard |
Measurements | 46.9″ x 42.9″ x 2.2″ |
Specifications – Xtreme Series 1000w LED
Light Output (PPF) | 3110 μmol/s |
System Efficacy | 2.92 μmol/J @ 240V AC |
AC Input Power | 1065W @ 230-240V AC |
AC Input Voltage | 120-277V AC, 50/60Hz |
Beam Angle | 90° × 120° |
Optics | Patented Deep Penetration Ultra High Transmittance Lens |
Auxiliary Light | Patented Light Pipe Multi Color 65k |
Proximity sensor | Doppler Radar |
Mounting Height Above Canopy | 40-85 cm / 15.7-31.4 in |
Thermal Management | Passive |
Max. Ambient Temperature | 40°C / 105°F |
Control | By Maxi Controller or Internal Controller |
Smartports (3x) | Interlink, Plant Temperature Sensor, Light Sensor |
Display For Spectrum and GUI | 1.54″ 65k Color IPS |
Total Harmonic Distortion (THD) | < 10% |
Lifetime L90 | > 50,000h |
IP Rating | IP65 |
Certifications | CE, UL 8800, UL 1598 Wet Location, DLC |
Warranty | 5 Year Standard |
Measurements | 46.9″ x 42.9″ x 2.2″ |
